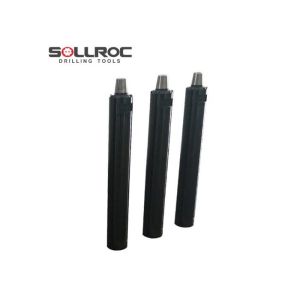

IR360 Shank 3 ½ API connection 6" DTH Drill Hammer Use For Mining
Product description
DTH(Down the Hole) hammer is used for drilling holes through a wide
range of rock types, the variety of which continues to extend well
beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when
compared to drifter hammers, which hammer on top of the drill
string. The DTH hammer piston always makes direct contact with the
drill bit and there is generally no loss of transmitted energy as
the hammer drills deeper, as is the case with drifter (top hammer)
rigs.
SOLLROC offers a wide range of DTH hammers suitable for a variety
of drilling operations. Our Down the Hole hammers provide the most
versatile and cost effective rock drilling method.
SOLLROC DTH hammers transmit intensive impact energy with low
energy loss. This results in good rock breakage, high penetration
rates and high productivity. The equipment is designed to give
optimal hole quality, reliability, and long service life, as well
as the best blasting results and low total operation cost.
Product Advantages:
1. Advanced hammer designs with high power and air efficiency
increases productivity
2. Tailored product offering covers all your applications and
conditions
3. Easy service and maintenance designs reduces machine downtime
4. Generic and proprietary shank options give you flexibility and
reliability
DTH Hammer specification:
| shank | IR360 |
| Length(less bit) | 1248mm |
| External diameter | 148mm |
| Top sub thread | API 3 1/2'' REG |
| Weight(less bit) | 100kg |
| Hole range | 155mm-190mm |
| Working pressure | 1.0-2. 5Mpa |
| Impact rate at 1.4Mpa | 23Hz |
| Recommended rotation speed | 20-30r/min |
| 1.0Mpa | 10m³/min |
| Air consumption 1.8Mpa | 20m³/min |
| 2.4Mpa | 28.5m³/min |
Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock
formations. Low to medium air pressures. Maximum hole deviation
control.
Concave Face
The all-round application bit face special for medium hard and
homogenerous rock formations. Good hole deviation control and good
flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to
medium air pressures. It is the most resistance to steel wash, and
may reduce the load and wear on the gauge buttons, but poor hole
deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock
formations in applications with high air pressures. Good
penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in
medium to hard rock formations. Designed for high air pressures and
good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining,
quarries, hydraulic and Hydro-Power Engineering, water well
drilling, Mineral exploration, anchoring hole drilling, geothermal
engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a
rapid hammer action to break the rock into sizeable chips which are
then evacuated from the bore hole by the air exhausted from the DTH
Hammer. The technique provides fast drilling of accurately aligned,
straight and clean holes in most ground conditions.
