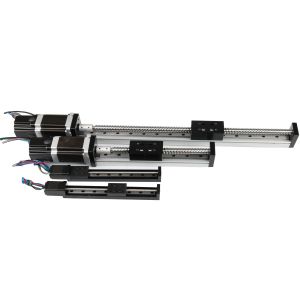

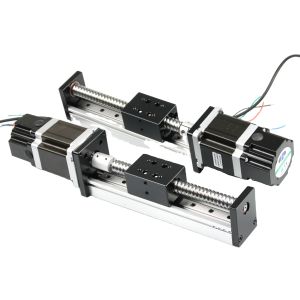

Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide

    Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers

    Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers
    • Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers
    • Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers
    • Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers
    • Buy cheap Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide from wholesalers

    Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide

    Ask Lasest Price
    Brand Name : JK
    Model Number : JK60HS67-2804BK2.8
    Certification : CE, ROHS,ISO9001
    Price : US$20.5~US$45.5
    Payment Terms : T/T, Western Union, paypal
    Supply Ability : 100000pcs/month
    Delivery Time : For samples , 7-15 days / For batch , 15-35days
    MOQ : 10pcs
    • Product Details
    • Company Profile

    Precision 1.8 Degree Nema 24 Covered Linear Module Ball Screw Slide

    1.8degree Nema24 covered Linear Module Ball Screw Slide Precision Stepping Cross Motor


    Step angle:1.8° Temperature rise:below 80 ℃
    Ambient temperature:-20 ℃ ~ + 50 ℃
    Insulation resistance:minimum 100MΩ, 500VDC
    Dielectric strength:500VAC for 1 minute
    Shaft radial clearance 0.02 max (450 g load)
    Shaft axial clearance:0.08Max. (450 g load)
    Maximum radial force:75N (20mm from flange)
    Maximum axial force:15N


    Electrical Specification:


    Brand NameJKONGMOTOR
    Model NumberJK60HS88-2008
    Phase2
    TypeHybrid
    Motor diameter60mm
    Certificationce, ISO, RoHS
    insulation classB
    Holding Torque3.1N.m
    Shaft diameter8mm
    weight1.4kg

    Specification of JK60HS motors:

    Model No.
    Motor Length

    Current
    /Phase

    Resistance
    /Phase

    Inductance
    /Phase

    Holding Torque

    # of Leads

    Detent Torque

    Rotor Inertia

    Mass
    (L)mmAΩmHN.mNo.g.cmg.cmKg
    JK60HS56-2008unipolar5621.83.1.1787003000.77
    parallel2.80.93.61.65
    Series1.43.614.41.65
    JK60HS67-2008unipolar6722.44.61.589005701.2
    parallel2.81.24.62.1
    Series1.44.818.42.1
    JK60HS88-2008unipolar88236.82.2810008401.4
    parallel2.81.56.83.1
    Series1.4627.23.1
    JK60HS100-2008unipolar10023.26.42.8811009801.7
    parallel2.81.66.44.0
    Series1.46.425.64.0
    JK60HS111-2008unipolar1112.04.48.33.28120011201.9
    parallel2.82.28.34.5
    Series1.48.833.24.5

    Details of Nema24 Linear Motion Ball Screw:


    The drawing of JK60HS67-2804BK2.8:


    Certifications:

    Recommend Products:


    Stepper motor Application:

    FAQ:


    Q: 1. Can you make the gearbox or gearmotor with custom specifications?
    A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

    Q: 2. Do you provide the samples?
    A: YES. Our company can provide the samples to you

    Q:3.Do you provide technology support?
    A: YES. Our company have strong R&D capability, we can provide technology support if you need.

    Q: 4. why should you buy from us not from other suppliers?
    A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

    Q: 5. How to ship to us?
    A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

    Q: 6. How can I know the product is suitable for me?
    A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
