(2) The mixing barrel is fixed on the frame; SUS304 high-grade
stainless steel; solid, durable and stainless; columniform bottom
and conical tip; no dead angle, even mixing, easy cleaning; there
is a pneumatic valve for discharging on the side of the mixing
barrel; the whole valve is connected by the gemel, so it is easy to
move away for checking and cleaning completely.
(3) There is silicon-rubber airproof ring between the mixing barrel
and the barrel cover; the extended parts of two transmission shaft
are airproofed to prevent the polluted things into the barrel.
(4) Design for security: when the barrel cover and the discharge
exit are unfolded, the blending system and the cutter system can
not be started up.
① mix evenly: making sure the coloring particles or pigment are
evenly distributed;
② strong blending ability: wetting the material quickly with 8-12%
thickness starch slurry;
③ judging the granulating situation by the max electricity
consumption;
④ the production granules are relaxed and snow-like with no block,
more particle and little powder;
⑤ the three procedures of the mixing, wetting and granulating run
continuously in one barrel avoiding the pollution of the manual
contact;
⑥ it can produce repeated with the right parameters, such as the
time and speed of the mixing and granulating, the consumption of
the adhesive, the consumption of the electricity, etc.;
⑦ the producing time is approx. ten minutes with high efficiency
and the production particles can be well compressed;
⑧ the great applicability: it can be used for pipelining with
one-step fluidized granulator, as well as the fluidized drier;
⑨ saving the adhesive about 20-25% and shorten the drying time;
⑩ features: advanced design, reasonable layout, reliable seal,
convenient operation, security, reliable, etc

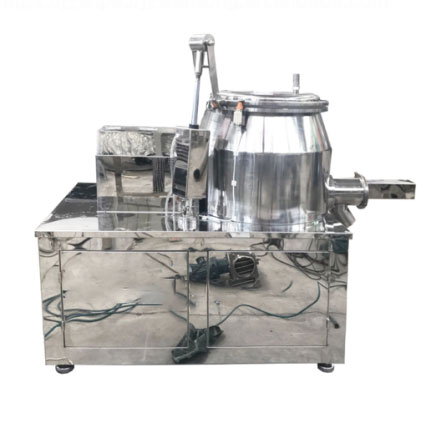

Products Show of Wet Mixing Granulating Machine
Application of Powder Granulator Machine
This machine is used in the pharmaceutical, food, punch, chemical,
solid beverage and other industries to make the required granules
from the stirred materials, especially for the materials with high
viscosity.
