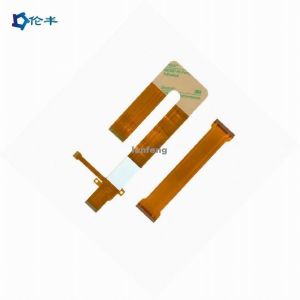

6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly

    Buy cheap 6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly from wholesalers

    Buy cheap 6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly from wholesalers
    • Buy cheap 6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly from wholesalers
    • Buy cheap 6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly from wholesalers

    6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly

    Ask Lasest Price
    Brand Name : Lunfeng
    Model Number : FPC001
    Certification : ISO9001:2015
    Payment Terms : T/T, Western Union
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 7-25 working days, To be negotiated
    • Product Details
    • Company Profile

    6 Layer FPC Flexible Circuit Board Polyimild Cable Flex Pcb Assembly

    FPC Flexible Circuit Board flexible PCB FPC cable
    PCB is like a layer cake, there are alternating layers of different materials which are laminated together with heat and adhesive. Double layer PCB manufacturing, also known as Double-Sided Printed Circuit Board, is a printed circuit board that has two layers conductive pattern. Double Sided PCBs circuits allow for closer (and more) routing traces by alternating between a top and bottom layer using vias. Today, double sided printed circuit board technology is the most popular type of PCB in the industry.
    FPC cable ( Flexible Printed Circuit ) Specifications
    Layer1-6layer
    FPC size(max/min)Min: 10x45mm Max:250x1200mm
    Thickness0.050mm—0.2mm
    Through Hole diameter(Max)6.5mm
    Through hole size(min)0.2mm
    Through hole tolerance±0.025mm
    Hole copper thicknessMin8μm Max38μm
    Min line width/space0.04/0.04 mm
    Etching Tolerance±20%
    The accuracy of the pattern on the hole±2mil
    Punching size(max)φ3.175mm
    Punching size(min)φ2.0mm
    Punching aperture Thickness(Max)0.2mm
    Thermosetting inks tolerance±0.2mm
    Green oil(Min)0.1mm
    Solder pad(min)8mil*8mil
    Solder pad distance(Min)8mil
    tolerance(Min)±0.1mm
    Available Laminates MaterialPl. PET. FR4-Pl
    Copper foil thickness
    12um, 18um, 35um, 70um

    Hot Sale Low Price China FPC Manufacture Flex Board Flexible PCB Supplier


    Hot Sale Low Price China FPC Manufacture Flex Board Flexible PCB Supplier



    FAQ:


    Q1: Are you a factory or trade company?
    A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

    Q2 : Is my switch file safe if I send it to you for manufacturing?
    A : We respect customer's design authority and will never manufacture touch panel for someone else without
    your permission. NDA is acceptable.

    Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
    A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

    Q4 : What payment do you accept ?
    A : TT/ Western Union.

    Q5 : What's your shipping way ?
    A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
    2. If you have your own forwarder, we can cooperate with them.

    Q6 : How about the MOQ?
    A : NO MOQ.

    Q7 : What's your main market?
    A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
