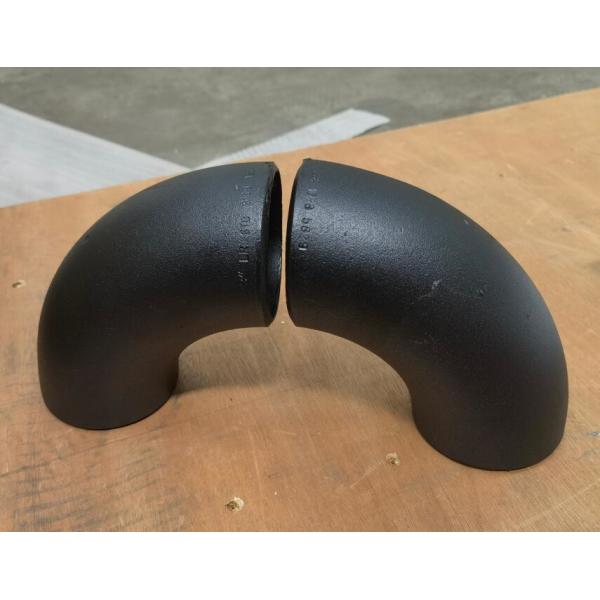

SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED

SEAMLESS STEEL PIPE ASTM A234 WPB Carbon Steel Pipe Elbow Black Galvanized

ASTM A234 WPB is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.

How Many Types of Steel Pipe Elbow?

According to the shape, there are straight and reducing elbow.

Depending on the angle, there are normally 45 degree, 90 degree and 180 degree elbow.

As based on radius, there are long radius ( 1.5D) and short radius ( 1D) elbow.

For connection, they can divided into socket weld elbow, butt weld elbow and threaded elbow.

Package of 90 Degree Elbow

We marked all Carbon Steel Buttweld Fittings with Name, Grade, Heat No, Size, Standard and Schedule Thickness. After done of blasting, painting and marking of 90 Degree ASTM A234 WPB Elbow, our workers wrapped them with plastic foam and packed them into wooden cases or pallets.

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.

Carbon Steel Elbow Dimensions

Dimensions of Carbon Steel 90 Degree Elbow & 45 Degree Elbow

Carbon Steel 45 Degree Elbow & Carbon Steel 90 Degree Elbow Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

DIMENSIONAL TOLERANCES OF BUTT WELD ELBOWS - 45° AND 90° - LR AND 3D - ASME B16.9

ASTM A234 WPB Elbow Dimensions

ASTM A234 WPB Elbow Dimensions

Standard: ASME B16.9, SH3408, HG/T21635 / 21631, SY/T0510

Diameter: DN20 to DN1500/ 3/4” to 60”

Schedule: Sch 20, STD, 40, XS, 80, 100, 120, 160, XXS

Radius: Short Radius (SR) and Long Radius (LR)

Type: Seamless and Welded

Surface: Black Primer, Galvanized

Established in 1989, HEBEI XINFENG HIGH PRESSURE FLANGE AND PIPE FITTING CO., LTD (XINFENG) specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.

　　Covering an area of 120000 square meters, equipped with advanced production lines and inspection instruments, XINFENG now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 14000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI，DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. Being a ISO 9001 & PED 97/23/CE certified company ,XINFENG follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

　　XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversea markets, exported far to South Korea, Russia, countries and regions in Middle East, Southeast Asia, South America and West Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

　　With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
