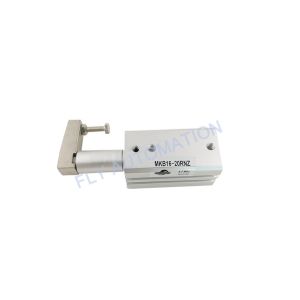

SMC Rotary Clamp Cylinder MKB16-20RNZ Standard Pneumatic Air
Cylinder
| Specifications |
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Action | Double acting |
| Rotary angle | 90° ±10° |
| Rotary direction | Clockwise, Counterclockwise |
| Rotary stroke (mm) | 7.5 | 9.5 | 15 | 19 |
| Clamp stroke (mm) | 10, 20, 30 | 10, 20, 30, 50 |
| Theoretical clamp force (N) | 40 | 75 | 100 | 185 | 300 | 525 | 825 | 1400 |
| Fluid | Air |
| Proof pressure | 1.5 MPa |
| Operating pressure range | 0.1 to 1 MPa | 0.1 to
0.6 MPa |
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing) |
| Lubrication | Non-lube |
| Piping port size | M5 x 0.8 | Rc1/8, NPT1/8
G1/8 | Rc1/4, NPT1/4
G1/4 |
| Mounting | Through-hole/Both ends tapped common, Head flange |
| Cushion | Rubber bumper |
| Stroke length tolerance | +0.6
–0.4 |
| Piston speed Note 5) | 50 to 200 mm/s |
| Non-rotating accuracy (Clamp part) | ±1.4° | ±1.2° | ±0.9° | ±0.7° |
| Theoretical Output |
Bore size
(mm) | Rod size
(mm) | Operating
direction | Piston area
(cm2) | Operating pressure (MPa) |
| 0.3 | 0.5 | 0.7 | 1.0 |
| 12 | 6 | R | 0.8 | 24 | 40 | 56 | 80 |
| H | 1.1 | 33 | 55 | 77 | 110 |
| 16 | 8 | R | 1.5 | 45 | 75 | 105 | 150 |
| H | 2 | 60 | 100 | 140 | 200 |
| 20 | 12 | R | 2 | 60.8 | 100 | 139 | 200 |
| H | 3.1 | 90.2 | 149 | 208 | 298 |
| 25 | 12 | R | 3.8 | 112 | 185 | 258 | 370 |
| H | 4.9 | 149 | 245 | 341 | 490 |
| 32 | 16 | R | 6 | 182 | 300 | 418 | 600 |
| H | 8 | 243 | 400 | 557 | 800 |
| 40 | 16 | R | 10.6 | 319 | 525 | 731 | 1050 |
| H | 12.6 | 380 | 625 | 870 | 1250 |
| 50 | 20 | R | 16.5 | 502 | 825 | 1149 | 1648 |
| H | 19.6 | 596 | 980 | 1365 | 1961 |
| 63 | 20 | R | 28 | 851 | 1400 | 1950 | 2801 |
| H | 31.2 | 948 | 1560 | 2172 | 3121 |
