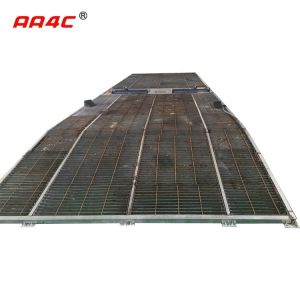

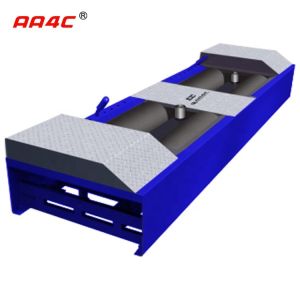

AA4C auto car test line auto chassis dynamometer Vehicle chassis
dynamometer auto chassis dynamometer CTDCG-13
description
Vehicle chassis dynamometer is mainly used for testing vehicle
dynamics, emissions and fuel consumption, (used in conjunction with
fuel consumption meter, fuel consumption meter etc.) , it can
fulfill car economy experiment, dynamic experiment and reliability
experiment. It can also test chassis output power, torque, speed,
distance, acceleration time, sliding distance and other data. We
have two major types: power performance dynamometer and emission
performance dynamometer.
Features
1. Through high precision dynamic balancing, surface coating roller
have high joint strength, abrasion resistance, adhesion
coefficient is 0.92 or higher
2. Equipped with adjustable gear wheel, in order to guarantee the
front drive vehicles test do not produce lateral slip; safe
and reliable
3. With fuel consumption meter, it can measure the condition of
fuel consumption
4. The body is made of high quality flat MS Windows machine,
ability is all ready, friendly interfaces, strong networking and it
is convenient
5. Retrieve testing data, automatically print the results
Technical parameters
Maximum axle-load (kg) 13000
Maximum absorptivity (kw) 300
Maximum braking torque (N.m) 3000
Maximum testing speed (km/h) 130
Roller diameter x length (mm) ∮373×1000
Roller center distance (mm) 480
Roller width inside/outside(mm) 700/2700
Operation voltage *current 96V ×35A
Power (Hz) 220V ±10% 50HZ
