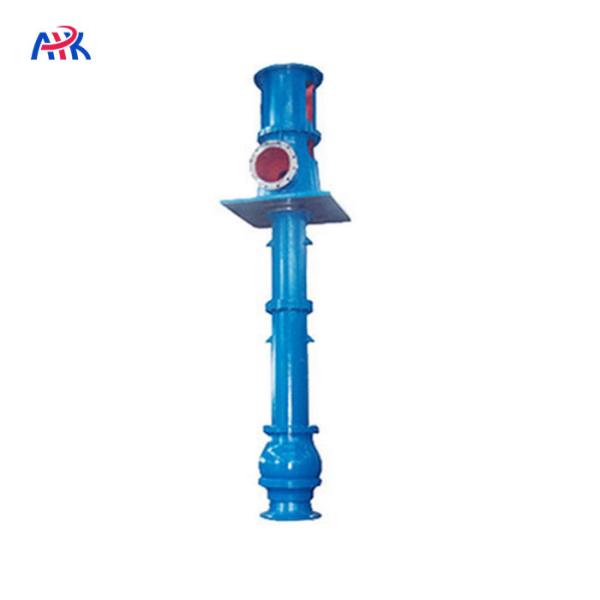

Diesel Engine Driven Vertical Turbine Pumps Submersible Long Shaft Pump

Submersible long shaft pump specifications:

1. Submersible deep well long shaft pump
2, diesel engine and electric motor drive all available
3, CE ,ISO9001 certificate
4, long shaft pump with 1st grade quality

Submersible long shaft pump models:
(Notice: flow rate, head meters, voltage, material and color, ODM OEM is acceptable. )

Model	Flow		Head	Speed	Motor Power
LLC type	m3/h	l/s	m	r/min	kw
100LC-10	85	23.6	40 50 60 70	1480	18.5 22 30 30
150LC-12	150	41.7	12 24 36 48	1480	11 18.5 30 45
150LC-30	150	41.7	30 60 90	2950	22 45 75
200LC-14.5	240 300 360	66.7 83.3 100	16.4 14.5 11.8	1480	22
200LC-23	240 300 360	66.7 83.3 100	25.3 23 20.2	1480	37
200LC-14.5*2	240 300 360	66.7 83.3 100	29 31.2 34.8	1480	45
250LC-32	360 450 540	100 125 150	34.8 32 28.9	1480	75
250LC-21*2	360 450 540	100 125 150	46.2 42 36.4	1480	90
250LC-32*3	360 450 540	100 125 150	104.4 96 86.7	1480	220
300LC-25	540 660 750	150 183.8 208.3	27.5 25 21.6	1480	75
300LC-39	540 660 750	150 183.3 208.3	43 39 35.6	1480	132
350LC-30	710 850 980	197.2 236.1 272.2	30.2 27 23	1480	110
350LC-30*2	750 900 1050	208.3 250 291.7	67 62 51	1480	250
400LC-62	1050 1320 1500	291.7 366.7 416.7	68.5 62 56.6	1480	355
450LC-43	1500 1740 1920	416.7 483.3 533.3	46.2 43 40.5	980	315
500LC-31	1920 2160 2400	533.3 600 666.7	34 32 28.5	980	280
500LC-50	1920 2160 2400	533.3 600 666.7	52.8 50 46.1	980	450

Submersible Long Shaft Pump Material
1. Bowl: Cast iron, SS304/316/316L/Duplex S.S
2. Shaft: SC#45/SS304/316/316L/Duplex S.S
3. Impeller: Cast iron, SS304/316/316L/Duplex S.S
4. Discharge head: Cast iron, SS304/316/316L/Duplex S.S

Long Shaft Submersible Pump Application
1. Water supply
2. Irrigation for deep well
3. Mine dewatering
4. Sprinkling and irrigation
5. Industrial wet-pit sumps
6. River/Sea water circulation
7. Fire-fighting

Note before order
1.The temperature of medium shall not be higher than 60 .
2.The medium shall be neutral and PH value between 6.5~8.5. If the medium is not consistent to the requirements, specify in the order list.
3.For long shaft submersible turbine pump type, the content of suspended substances in the medium shall be less than 150 mg/L; for long shaft submersible turbine pump type, the max. Diameter of solid particles in the medium shall be less than 2 mm and the content less than 2 g/L.
4. long shaft submersible turbine pump type shall be connected with clean water or soapy water outside to lubricate the rubber bearing. For two stage pump, lubricant pressure shall not be less than operational pressure.

Package: the submersible turbine pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption,moisture-proof package, standard export wooden case.

Customer Install Cases:

APK created its own value chain. With trust, expertise, challenge, and pleasure as our core values. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. APK grows together with ourselves, customers and society, looking partners all over the world.
