    Qucik Set Pipe Cutting And Beveling Machine

    Ask Lasest Price
    Brand Name : WELLNIT
    Model Number : OCP-89
    Certification : ISO,CE
    Price :
    Payment Terms : T/T
    Supply Ability : 20Sets per day
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

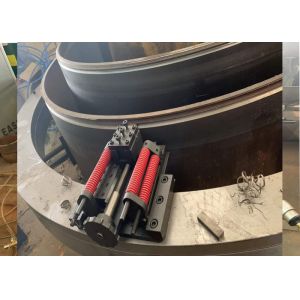

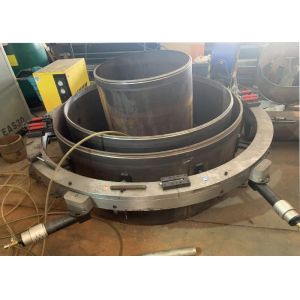

    Qucik Set Pipe Cutting And Beveling Machine

    Hydraulic Pipe Cutting And Beveling Machine


    Main Charactor

    FB Series explosion proof pipe cutting and beveling machine is our newpatented product. It adopts stepless speed control technology,with steadyperformance. Main applied in the field of oil refinery,chemical plant,and other flammable and explosive place. The split frame design allows it to separate mount on the OD of the in-line pipe for strong stable clamping Compact design,lower axial and radial clearance,suitable for narrow room application.

    Ex-proof Mark:Exde ll Bt5Gb

    MAIN CHARACTERISTIC

    Power Supply:220-415V 3PH 50/60HZ

    12.5MPa@2-60L/Min

    Powerful drive,High efficiency

    Stable Performance

    Low noise Adjustable speed

    Ideal for heavy wall &large size pipe


    Parameter


    ModelWorking Range (ID-OD)Wall ThicknessRotation Speed
    OCE-89Φ25-893/4''-3''≤3542r/min
    OCE-159Φ50-1592''-5''≤3520r/min
    OCE-168Φ50-1682''-6''≤3518r/min
    OCE-230Φ80-2303''-8''≤3515r/min
    OCE-275Φ125-2755''-10''≤3514r/min
    OCE-305Φ150-3056''-10''≤3513r/min
    OCE-325Φ168-3256''-12''≤3513r/min
    OCE-377Φ219-3778''-14''≤3512r/min
    OCE-426Φ273-42610''-16''≤3512r/min
    OCE-457Φ300-45712''-18''≤3512r/min
    OCE-508Φ355-50814''-20''≤3512r/min
    OCE-560Φ400-50616''-22''≤3512r/min
    OCE-610Φ457-61018''-24''≤3511r/min
    OCE-630Φ480-63020''-24''≤3511r/min
    OCE-660Φ508-66020''-26''≤3511r/min
    OCE-715Φ560-71522''-28''≤3511r/min
    OCE-762Φ600-76224''-30''≤3511r/min
    OCE-830Φ660-81326''-32''≤3510r/min
    OCE-914Φ762-91430''-36''≤3510r/min
    OCE-1066Φ914-106636''-42''≤3510r/min
    OCE-1230Φ1066-123042''-48''≤3510r/min

    Note:Non-standard machine are available according to customers' requirement.
