The Introduction

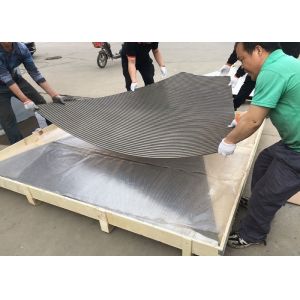

Sieve bend screen is a kind of screening equipment specially for
solid-liquid separation, classification of fine particle materials,
dehydration, desliming and mediating effect is very good, is also
widely used in various industries.
The Features:
- Simple structure, do not need power can also be screened,
processing capacity and screening efficiency is higher than seam
screening machine
- Large processing capacity, high efficiency, specialized for
dewatering and removing medium of materials
- Fully enclosed structure, no leakage, improve the workshop working
environment
- Screen box and screen mesh according to user requirements can be
made of stainless steel material, and screen surface Angle into arc
through the net, easy leakage, wear resistance, corrosion
resistance
- Can automatically clean the screen plate and feed port
Materials: carbon steel and stainless steel (302, 304, 304L, 316, 316L etc).
characteristics: The welded stainless steel water well screen is made up of rods
and warp. The rod can be round wire, triangular wire or trapezoid
wire. The warp is triangular wire (V-shaped wire). Water well
screens have a structure and high open area, as well as accurate
slot dimension. At the same time, water well screen have
heat-resisting, anti-corrosive, good machine capability, last long,
safety and reliability and so on characteristics. It can be used in
many kinds of medium filtering.
Uses: The strainer is a kind of filtered water tubing with the
perforation. It can be used with the deep well pump, dive water
pump, water-treatment equipment, environmental protection, sea
water transforming into the industrial water treatment and life use
water desalination treatment, running water treatment, water
softening treatment and the petroleum industry. It can also be used
as petroleum product terminal filters, chemical acid, the alkali
liquid filters, ethyl alcohol and organic solution recycling
filters, etc.
| Norminal Diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | | | | | |
| 2-7/8” | 58 | 73.0 | 4 | 90 | | | | | |
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | | | | | |
| 16 | 378 | 406.4 | 34 | 9 | | | | | |
| 20 | 476 | 508.0 | 53 | 9 | | | | | |
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells |
Wires and Rods Information
Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every
intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :
The most common wire
The most common support rod
The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.Precision filtration
3.Long work time
4.The stainless steel:be resistance to crosion and abrasion.
5.High wear resistance
The Usage accasions:
The features of the Wedge Wire screen make it an attractive
solution for separating solids from liquids, retaining media,
filtering, sizing, dewatering, collecting, and distributing.
Some of the applications where profile wire screens can be found
include, but not limited to the following:
Corn Wet Milling
Malting Processes
Winery Processes
Sugar Processes
Brewing Processes
The Details
The Package:
The Delivery
