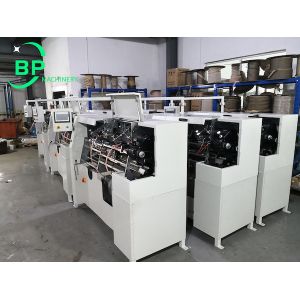

Semi Automatic Metal Spiral Binding Machine SSB420 For Notebook
with coil lock function
Description :
SSB420 model spiral binding machine is popular machine for notebook
factory produce spiral book .
Notebook Spiral binding machine SSB420 used for spiral metal close,spiral metal bind is another bind method for notebook,also popular
for market.Compare double wire bind,it save material,as only single wire,also the book used by single wire bind look more special.
Machine operational priciple :
Material nylon coated wire go straight by adjust device and be
twist in the roll bar,the roll bar we also could call spiral
forming bar,when spiral formed,worker put notebook in left feeder
device,finish feeder action,notebook will be deliver to spiral bind
work area,then knife cut,notebook drop down and deliver by
conveyor.
Technical data :
| Speed | 600-900 books/hour |
| Air Pressure | 5-8 Kgf |
| Wire Diameter | 8-32mm |
| Binding size | 75mm-420mm |
| Power | 1PH 220V 50/60HZ(other voltage on request |
| size | 1900mmx700mx1600mm |
| Net weight | 600Kg |
Applicative spiral dia and notebook thickness relations
| Diameter(mm) | Line Diameter(mm) | Aperture(mm) | Binding thickness(mm) |
| 8 | 0.7-0.8 | Φ3.0 | 5 |
| 10 | 0.7-0.8 | Φ3.0 | 7 |
| 12 | 0.8-0.9 | Φ3.5 | 9 |
| 14 | 1.0-1.1 | Φ4.0 | 11 |
| 16 | 1.0-1.1 | Φ4.0 | 12 |
| 18 | 1.0-1.1 | Φ4.0 | 14 |
| 20 | 1.1-1.2 | Φ4.0 | 15 |
| 22 | 1.1-1.2 | Φ5.0 | 17 |
| 25 | 1.1-1.2 | Φ5.0 | 20 |
| 28 | 1.2-1.3 | Φ5.0 | 23 |
| 32 | 1.2-1.4 | Φ5.0 | 26 |
Machine Common could do spiral min 8mm ,max spiral dia 25mm ,for
some special design ,it can be do max 32mm spiral dia .
Machine details mould parts
From left to right : Spiral dia bar Hole pitch teetch
If you do spiral dia 10mm ,to binding 5-6 mm notebook ,then you
need use 10mm core size
Hole pitch teetch size same with notebook hole pitch ,if use 6.35
hole pitch ,then you need used 6.35 hole pitch teetch bar

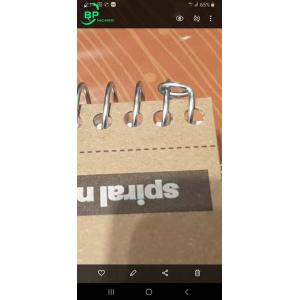

If you wanna coil lock cutting like picture show ,you need purchase
our machine to be used do coil lock .
Application :
1 : Max A3 notebook , Min A7 notebook
2. Notebook thickness max 20mm
3. Could do notebook cover bigger differ inner paper .
Why you need choose this machine do spiral book produce
1 . First of course you wanna do coil lock cutting
2.Affordable price ,compare Germany machine ,now we give you
optional choice
3. Compare other similar machine in China ,this do not have limits
,can do notebook cover bigger inner paper.
4. 90% choice in China notebook manufacture ,good test and stable .
