Solar Photovoltaic Bracket Steel Forming Machine Feeding 200 Thickness 1.5-2.5mm

Feeding 200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine

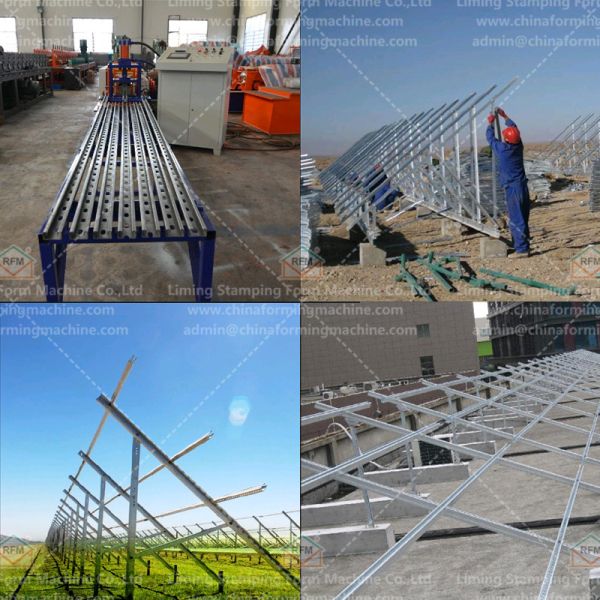

Solar photovoltaic stent forming machine is suitable for equipment for producing photovoltaic stents

Structural Features of Solar Photovoltaic Mounting Machine:

1. The unwinding rack is integrated with the leveling machine, which does not occupy space and is easy to operate. The variable diameter supporting device is used to facilitate loading and unloading.

2. The whole machine adopts an integral steel body, which has a solid structure, stable operation, small area and space saving.

3. After the roller is heat-treated and quenched to HRC60 degrees, it is chrome-plated and then ground, with strong toughness.

Feeding ＜200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine

Solar photovoltaic stent forming machine is suitable for equipment for producing photovoltaic stents

Structural Features of Solar Photovoltaic Mounting Machine:

1. The unwinding rack is integrated with the leveling machine, which does not occupy space and is easy to operate. The variable diameter supporting device is used to facilitate loading and unloading.

2. The whole machine adopts an integral steel body, which has a solid structure, stable operation, small area and space saving.

3. After the roller is heat-treated and quenched to HRC60 degrees, it is chrome-plated and then ground, with strong toughness.

Technical parameters of Feeding 200 thickness 1.5-2.5mm solar photovoltaic bracket forming machine

Structural parameters of solar photovoltaic bracket forming machine

1Servo Feeder for Solar Photovoltaic Bracket Forming Machine

Function: feeding

Structural features: Driven by a servo motor-3KW. Multi-stage feeding: 10 groups of different feeding lengths can be input, and each group provides 999 stamping times. LCD touch display is convenient to change and set various technical parameters. The automatic induction start system is linked with the punch (control the start of the punch).

2. Solar photovoltaic bracket forming machine punch

Function: Punching

Structural features: The machine body is welded by steel plate, with good rigidity and beautiful appearance.

3. Forming host of solar photovoltaic bracket forming machine

Forming passes: about 20-22 passes (rollers) are determined according to the requirements of the product drawings

Forming variety: C profile

Forming frame: gantry type, gear box drive.

Feeding width: ≤200mm

Material thickness: 1.5-2.5mm

Roller shaft diameter: φ70mm

Roll die material: Gcr15, quenching treatment, HRC58-62°

Main drive motor: 22kw servo motor drive (with brake function).

4. Cutting machine for solar photovoltaic bracket forming machine

Form: hydraulic cutting machine / burr-free cutting (optional)

Structural features: The cutting machine is placed behind the forming machine, and the length is fixed by the host, and the cutting length can be set by yourself.
