    Small Enthalpy Difference PAC For Control Environment Changes

    Ask Lasest Price
    Brand Name : Coolent
    Model Number : CYAT50-85
    Certification : ISO/CE
    Price : to be Negotiated
    Payment Terms : T/T
    Supply Ability : 1000/Month
    Delivery Time : 4W
    • Product Details
    • Company Profile

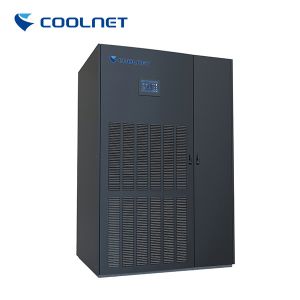

    Small Enthalpy Difference PAC For Control Environment Changes

    Small Enthalpy Difference PAC For Various Application To Control Environment Changes


    Product Introduction

    Coolnet precision air conditioners are mainly designed to meet the requirements of special craftsmanship and specific environments of precision equipment. Its purpose is to accurately control its temperature, humidity, etc. and require it to be controlled within a certain range. It is also called a constant temperature and humidity air conditioner, which is characterized by having a large air volume and adapting to various changes in thermal load. And coolnet precision air conditioner can control the temperature difference range to 0.1 degrees Celsius or even higher. Similarly, this series of precision air conditioners can use a larger circulating air volume to reduce the enthalpy difference under a certain cooling capacity, so usually the unit can only operate under a relatively high sensible heat ratio. This is precisely suitable for server rooms and data centers which are placed in plenty of equipments with high demand in heat dissipation.


    Benefits


    Air Supply Method



    Applications

    • IDC, Computer room
    • Network equipment room, Server room,communication equipment room
    • Monitoring room, Power distribution room and battery room
    • High precision lab, Test room, Inspection room, Measuring room
    • Industrial control room, High precision workshop

    Features

    • The same external pressure requirement. The inner fan can be operated with stepless speed regulation, and the temperature difference between the supply and return air, the temperature of the return air and the temperature of the outlet air can be selected for control.
    • Standard EEV dual electronic expansion valve, low-load dehumidification
    • Large area V-shaped evaporator, high air volume, high sensible heat ratio
    • Large humidification capacity, suitable for poor water quality, low maintenance
    • Frequency conversion series units are equipped with oil separator as standard
    • The power consumption per 1kg/h of humidification should not exceed 0.8kW to achieve energy-saving operation.

    Technical Parameters

    Model: CYAS20D/US23D/US26D/US28D/US31D/US35D/US40D/US45D/U
    Power Supply380V 3Ph-50HZ
    Air DischargeUpflow/Downflow
    Cooling Capacity :24℃/50%RH
    Total CapacityKW20.523.526.828.331.535.540.245.6
    SensibleKW18.921.624.226.128.933.237.642.2
    AEERw/w3.73.63.63.73.73.73.73.6
    Air Flowm3/h6830765075808500920098001060012000
    Compressor Hermetic scroll
    RefrigerantR407C
    Compressor quantityPC11111111
    Fan Section Centrifugal fan (Optional EC)
    Fan quantityPC11111122
    Rated currentA2.52.52.83.23.54.14.44.9
    Rated powerW10501100120013001320200021502400
    Reheat CapacityKW66669999
    Reheat MaterialPTC
    Humidifier Section Electrode type
    CapacityKg/h555555513
    Rated CurrentA666666615
    Condensor Model58588080100120150150

    Model: CYAT26D/UT31D/UT35D/UT41D/UT45D/UT50D/UT55D/UT61D/UT70D/UT76D/UT85D/UT90D/UT100D/U
    Power Supply380V 3Ph-50HZ
    Air DischargeUpflow/Downflow
    Cooling Capacity :24℃/50%RH
    Total Capacity (1)KW26.931.935.941.945.350.555.461.470.576.285.590.8102
    SensibleKW24.829.533.138.842.547.851.657.565.271.279.584.595.7
    AEERW/W3.63.63.63.63.63.73.73.63.63.63.63.63.6
    Air Flowm3/h800095001000011500130001550016000175001850020500225002350024200
    Compressor Hermetic scroll
    RefrigerantR407C
    Compressor quantityPC2222222222222
    Fan Section Centrifugal fan (Optional EC)
    Fan quantityPC2222222223333
    Rated currentA4.34.34.34.44.44.455.25.26.516.516.516.5
    Rated powerW1600160018001800200020003000330039003900540063006300
    Total heating capacityKW66699999912121212
    MaterialPTC
    Humidifier Section Electrode type
    CapacityKg/h5555131313131313131313
    Rated CurrentA6666151515151515151515
    Condenser Model2*582*582*582*582*802*802*1002*1002*1202*1502*1502*1652*180

    Certificates


    Factory Details


    Packing & Delivery


    Case
