    150076H-1 Industrial Air Springs Airsustech Safe Height 85mm As Inflatable Chuck

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 150076H-1
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    150076H-1 Industrial Air Springs Airsustech Safe Height 85mm As Inflatable Chuck

    150076H-1 Industrial Air Springs AIRSUSTECH 150076H With Safe Height 85mm As An Inflat-able Chuck


    150076H-1 Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth :M10
    Top Cover Distance Plate Screw (Nut) :109MM
    Bottom Cover Plate Screw (Nut) Tooth :M10
    Screw Center Distance of Bottom Cover Plate : 109MM

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : /

    Cover Plate
    Top Cover Plate Diameter:133MM
    Bottom Cover Plate Diameter: 133MM

    Rubber Bellows
    Rubber Bellows MAX Diameter: 160 mm
    Rubber Bellows Natural Diameter :140 mm
    The Working Stroke : MAX 85 mm to MIN 46 mm
    Maximum Height : 85 mm
    Minimum Height :46 mm
    Stroke Height : 39 mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :NO Pieces of Girdle Hoop


    150076H-1 Industrial Air Springs AIRSUSTECH Technical performance parameter list:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    45(mm)4365797188601008115513010.37
    55(mm)29942857070083096310880.46
    65(mm)2263354515656707829060.57
    76(mm)1642583444355266217200.67
    85(mm)1221902543303994755440.75
    95(mm)58941331742202633080.87
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)107150187231265303319
    Stiffness and frequency at design heightNatural frequency Hz4.053.823.693.653.553.503.33
    Stiffness and frequency at design heightNatural frequency cpm243229221219213210199

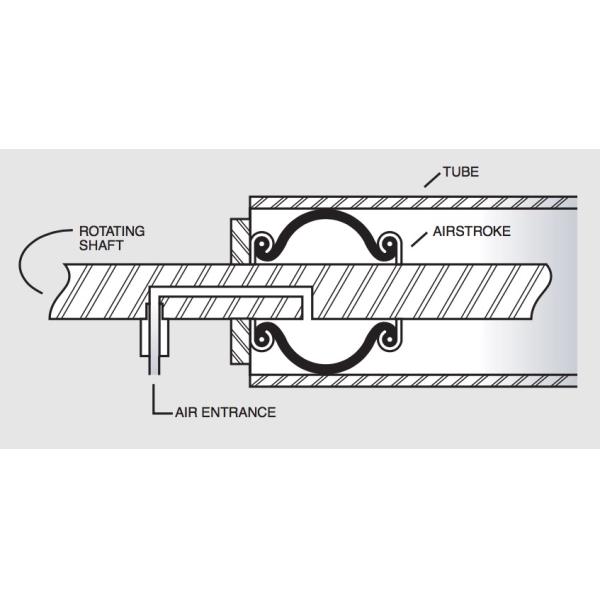

    150076H-1 Industrial Air Springs AIRSUSTECH As An Inflat-able Chuck:
