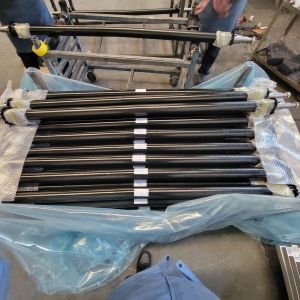

    76MM Round Trailer Straight Axle 5000-7000lb Unbraked Trailer Axle

    Ask Lasest Price
    Brand Name : Airui
    Model Number : AC079
    Certification : ISO/TS16949
    Price : Deliberations
    Payment Terms : L/C, T/T
    Supply Ability : 20000 Set/Sets per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    76MM Round Trailer Straight Axle 5000-7000lb Unbraked Trailer Axle

    76 MM Round Solid Tube Straight Unbrake Trailer Axle 2500-3500 Kg


    BOLT PATTERN
    Use the distance between the center of one bolt hole to the center of the bolt hole adjacent to it:
    If the distance is:
    2-5/8" - the bolt pattern is 5 on 4-1/2
    2-3/4" - the bolt pattern is 5 on 4-3/4
    3" - the bolt pattern is 5 on 5
    3-1/4" - the bolt pattern is 5 on 5-1/2

    Hub Face (HF):

    measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.


    5* 4.5" wheel bolts pattern
    NO.DescriptionQTYoption 1option 2option 3
    1axle shaft160*5mm round tube50mm Rd / Sq solid
    2mounting plate2AT01200107
    310" brake plate2AZ004URAZ013URAZ026L/R
    4bolt, washer & nut8AC00100501/2/3
    5oil seal2AC00300201
    6inner bearing2L68149/11
    710" hub drum2AC00300300
    8wheel nut101/2"-10UNF
    9outer bearing2L44649/10
    10flat washer2AC00201001
    11castle nut2AC00200701
    12split pin2AC00200404
    13dust cap2AC00300601


    FAQ:

    1: Could you please make us an offer as soon as possible?

    In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.


    2: Could you please provide us with the specifications of the products?

    Sure, please confirm the product code you need before that.


    3: How can you guarantee the quality of your products?

    Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.


    4: How to solve the problems in the later stage?

    We are confident in our products. We pack them well to make sure they are well protected.


    In trailers, the parking brake, also called hand brake, emergency brake, or e-brake, is a latching brake usually used to keep the vehicle stationary. It is sometimes also used to prevent a vehicle from rolling when the operator needs both feet to operate the clutch and throttle pedals. Automobile hand brakes usually consist of a cable directly connected to the brake mechanism on one end and to a lever or pedal at the driver's position. The mechanism is often a hand-operated lever (hence the hand brake name), on the floor on either side of the driver, or a pull handle located below and near the steering wheel column, or a (foot-operated) pedal located far apart from the other pedals.
