Practical OEM Heat Sink With Copper Tube For Electronic Equipment Rustproof

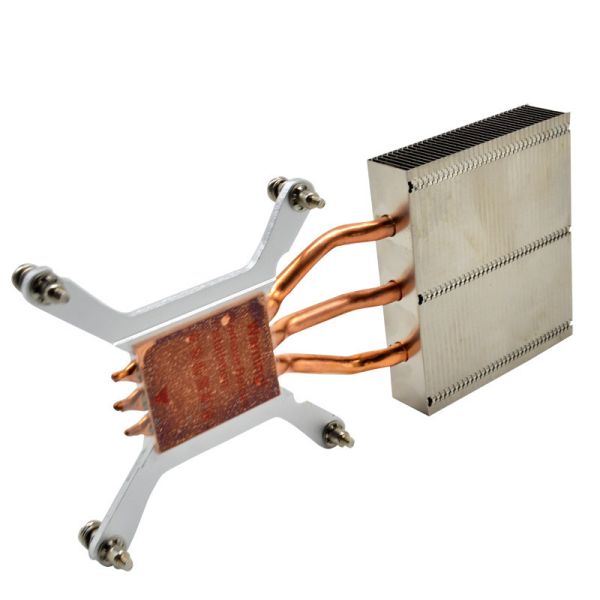

Custom 3pcs Pipes CPU Heat Pipe Radiator With Screws For Easy To Install

Quick Detail

Description

Heat pipe radiator is a new product produced by using heat pipe technology to make major improvements to many old radiators or heat exchange products and systems. There are two types of heat pipe radiators: natural cooling and forced air cooling. The thermal resistance of air-cooled heat pipe radiator can be made smaller, and it is often used in high-power power supplies.

Note

Heat pipe radiator
The heat pipe has two particularly important functions: the first is to quickly transfer heat; the second is to balance the heating points, which can greatly enhance the performance of the radiator and meet the heat dissipation requirements of high-heating graphics cards.
After the graphics card radiator is added to the heat pipe, many classic heat dissipation design structures have been produced. For example, the famous "keel" radiator uses a heat pipe to draw heat from the base to the fins, and then surround the fan in a ring. Use fan air flow to dissipate heat to the surroundings. This type of radiator solves the disadvantages of uneven heat conduction and slow heat dissipation when the heat sink is used alone. In addition, some side-blown radiators often use heat pipes to balance the temperature of the fins and the core, and they also get very good results.
However, the heat dissipation area of ​​the fins of this annular heat pipe design is not large enough, so neither the heat exchange area nor the heat storage capacity is strong enough, or it can not meet the needs of high-end graphics cards. In order to solve this problem, the designer used multiple heat pipes to conduct heat from the core, then densely arranged a large number of fins, and then used a fan to blow air to quickly take away the heat from the fins. The application of the heat pipe greatly improves the heat dissipation capacity of the air-cooled radiator. Therefore, manufacturers have worked hard on heat pipe radiators. From the perspective of development and trends, heat pipe air-cooled radiators are not only the mainstream of graphics card cooling, but also the mainstream of cooling design for a long time in the future.

The heat pipe radiator has the following advantages:

• The thermal response speed is fast, and its ability to transfer heat is more than 1000 times larger than that of copper pipes of the same size and weight;
• Small size and light weight;
• High heat dissipation efficiency, which can simplify the heat dissipation design of electronic equipment, such as changing air-cooling to self-cooling;
• No external power supply is required, and no special maintenance is required during work;
• It has good isothermal properties. After heat balance, the temperature gradient between the evaporation section and the cooling section is quite small, which can be approximately regarded as 0;
• The operation is safe and reliable, and does not pollute the environment.

We can offer the heat pipe radiator service, small qty is acceptable.

Technical Support

We can offer the design and simulation service. For example, our German customer's case.

According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.

Dongguan Fodor Technology Co., LTD., founded in 2015, is committed to the development and sales of electronic heat sink and hardware electronic accessories, including: aluminum extrusion heat sink, cold forging heat sink, water cooling heat sink, cooling fan modules, aluminum stamping products and zinc aluminum die-casting products.Based on the development concept of "Rich quality & leading future", Fodor has the industry perfect supply chain resources, to provide customers with timely, efficient and high-quality services, reduce the inconvenience of customers in each procurement link, really make customers save time, effort and worry.

Fodor now has 2 senior engineers of water cooling radiator, 2 senior engineers of aluminum extrusion heat sink, 2 senior engineers of stamping, 2 senior engineers of fan module, and 10 other engineers and quality engineers, to control product design optimization and quality requirements.Sidework, Proe, CAD, PDF and other documents can be accepted by Fodor company for project consultation. The surface treatment that Fodor company can complete includes: anodizing, electrophoresis, complex acid salt, electroplating, painting, powder spraying, chromium plating and other processes to meet the needs of our customers.

Fodor adhering to customer first, achieve the win-win situation, is willing to establish the long-term cooperation relations with the general customers。
