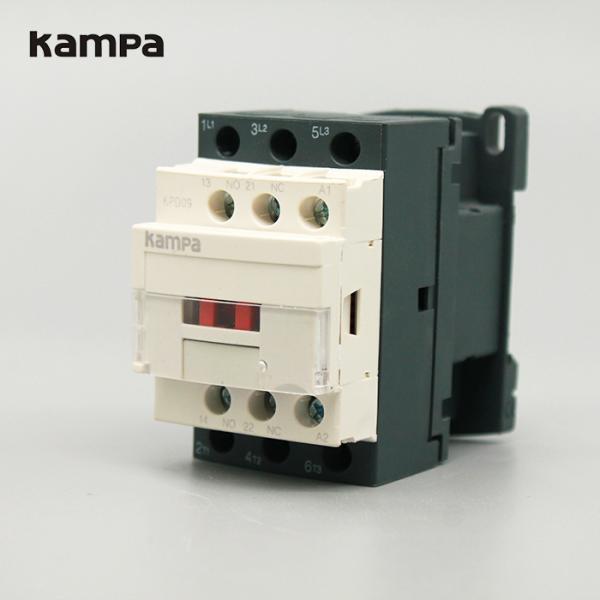

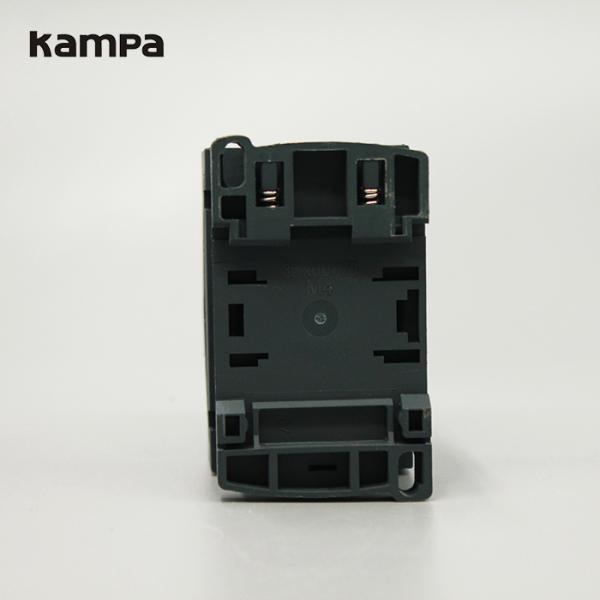

Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor

    Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers

    Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers
    • Buy cheap Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor from wholesalers

    Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor

    Ask Lasest Price
    Brand Name : Kampa
    Model Number : LC1-D09
    Delivery Time : 3days
    Supply Ability : 10000 Piece/Pieces per Month
    Price : $8.00 - $15.00/Pieces
    • Product Details
    • Company Profile

    Kampa High quality LC1-D09 AC Magnetic definite purpose Contactor

    Specification
    Specification
    Model
    Rated working current (A)
    Rated heat current (A)
    AC3 capacity of three-phase squirrel-cage motor AC3(KW)
    220/230V
    380/400V
    415V
    440V
    500V
    600/690V
    AC3
    AC4
    KW
    KW
    KW
    KW
    KW
    KW
    LC1-D09
    9
    3.5
    20
    2.2
    4
    4
    4
    5.5
    5.5
    LC1-D12
    12
    5
    20
    3
    5.5
    5.5
    5.5
    7.5
    7.5
    LC1-D18
    18
    7.7
    32
    4
    7.5
    9
    9
    10
    10
    LC1-D25
    25
    8.5
    40
    5.5
    11
    11
    11
    15
    15
    LC1-D32
    32
    12
    50
    7.5
    15
    15
    15
    18.5
    18.5
    LC1-D40
    40
    18.5
    60
    11
    18.5
    22
    22
    22
    30
    LC1-D50
    50
    24
    80
    15
    22
    25
    30
    30
    33
    LC1-D65
    65
    28
    80
    18.5
    30
    37
    37
    37
    37
    LC1-D80
    80
    37
    125
    22
    37
    45
    45
    55
    45
    LC1-D95
    95
    44
    125
    25
    45
    45
    45
    55
    45
    Number of the contact
    3P+NO
    3P+NC
    3P+(NO+NC)
    Matched auxiliry contactor
    LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC)
    LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
    Matched time delay auxiliary contact
    Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s)
    Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s)
    External dimensions & Installation dimensions
    Type
    Amax
    Bmax
    Cmax
    a
    b
    φ
    LC1-D09/12/18
    45
    74
    80
    35±0.50
    50±0.50/60±0.60
    4.5
    LC1-D25
    56
    84
    93
    40±0.50
    50±0.50/60±0.60
    4.5
    LC1-D32
    98
    LC1-D40/50/65
    75
    127
    114
    40±0.50
    100±0.70/110±0.70
    6.5
    LC1-D80/95
    85
    127
    125
    40±0.50
    100±0.70/110±0.70
    6.5
    Product Description
    Packing & Transportation
    Company Profile
    Yueqing Kampa Electric Co., Ltd. is Established in 1990.Has variety of goods,such as Relay,Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, hour meter, electric power relay and so on. Most of them are exported to Europe , America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. The enterprise has gained ISO9001, RVA Quality System Attestation (Netherlands),and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China, successively, and has been insured by PICC.
    Certificate
    FAQ
    1. who are we?
    We are based in Zhejiang, China, start from 2009,sell to South America(25.00%),Africa(20.00%),Eastern Europe(18.00%),North America(5.00%),Southeast Asia(5.00%),Central America(5.00%),Domestic Market(5.00%),Mid East(3.00%),Western Europe(3.00%),Northern Europe(3.00%),Oceania(2.00%),Eastern Asia(2.00%),Southern Europe(2.00%),South Asia(2.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Mould case circuit breaker,AC contactor,Residual current circuit breaker,Temperature controller,Relay

    4. why should you buy from us not from other suppliers?
    1. 15years' export experience. 2. We can help one electric shop to arrange the products. 3. OEM, ODM available. Quality product with Quality service. 7*24 hours standby. 4. Young sales but professional.

    5. what services can we provide?
    Accepted Delivery Terms: FOB；
    Accepted Payment Currency:USD;
    Accepted Payment Type: T/T,L/C,PayPal,Western Union;
    Language Spoken:English,Chinese
