Description:
It is a digital temperature/humidity controller module. LCD
display, very clear, easy to use, and powerful. It can be widely
used in smart home, industrial control, automatic irrigation,
indoor ventilation. Protect the device.
XY-WTH1 temperature and humidity control module high-precision
digital display word dual output automatic constant temperature and
humidity control panel.
The product uses industrial grade chip, high precision SHT20
temperature and humidity sensor
Feature:
1. LCD HD display
2. Power-down memory function
3. Display temperature in real time
4. Display humidity in real time
5. Automatically save parameters
6. Support UART settings
7. Support measurement of temperature and humidity at the same time
8. Work status indicator
9. Automatically adjust working mode
10. Independent of parameters
11. Beautiful and practical
12. High precision detection
13. Display multiple parameters at the same time
Parameter:
1. Product Name: Humidity Temperature Controller
2. Product Code: XY-WTH1
3. Working voltage: DC 6V-30V
4. Control load current: 10A (maximum)
5. LCD refresh rate: 0.5 seconds
6. Sensor: SHT20 Humidity Temperature Sensor
7. Temperature range: -20 ° C ~ 60 ° C
8. Temperature control accuracy: 0.1 °C
9. Humidity range: 0%-100%RH
10. Humidity control accuracy: 0.1% RH
11. UART data transmission cycle: 1.0 second
12. Controller size: 79 * 43 * 35mm
13. Sensor probe size: 60 * 30 * 20mm
14. Sensor cable length: 1.0 m
Additional Feature:
1. Set or read data via UART.
The temperature/humidity can be started by the UART setting, and
parameters such as temperature/humidity, temperature/humidity
correction, etc. can be stopped.
2. Temperature/humidity real-time report.
The controller module will report the current temperature/humidity
to the terminal device via the UART at 1 second intervals to
facilitate data acquisition when the temperature/humidity reporting
function is turned on.
3. Relay enabled (default on).
If the relay is enabled to turn off, the relay remains off.
In other words, the output state does not change regardless of the
measured temperature/humidity.
Steps for usage:
1. Connect the sensor to the controller
2. Power to the controller
3. Adjust the starting temperature, stop the temperature and
temperature correction
4. Adjust the starting humidity, stop the humidity and humidity
correction
5. Enable relay output as required
6. Disconnect the power
7. If required in step 5, connect the load supply at the relay
output terminal
8. Connect the power to the controller again
9. Testing and working
Application:
Control cabinet
2. Production workshop
3. Hatching aquaculture control
4. Tobacco industry
5. Printing house
6. Aquarium temperature control
7. Bedroom
Note:
It is a relay output mode and cannot be used as a power module. It
cannot output voltage. The load needs to be connected to a separate
power source.
Package:

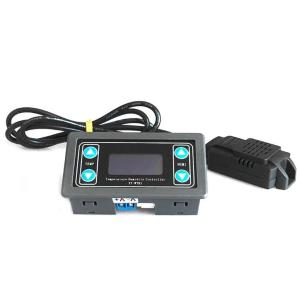

1* XY-WTH1 Humidity Temperature Controller
1 * SHT20 sensor
