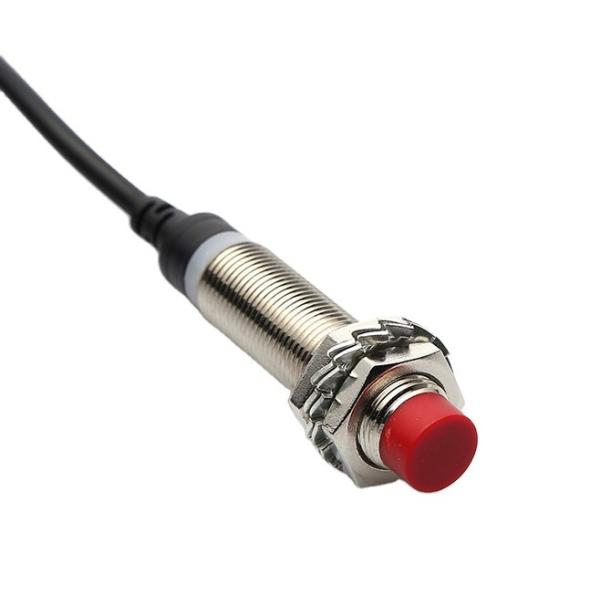

3-wire 12vdc NPN NO 1.0m Cable LM18-3008NA Position Sensor Switch 8mm Detecting Distance M18 Inductive Proximity Sensor

  • Product Details
  • Company Profile

3-wire 12vdc NPN NO 1.0m Cable LM18-3008NA Position Sensor Switch 8mm Detecting Distance M18 Inductive Proximity Sensor

3-wire 12vdc NPN NO 1.0m Cable LM18-3008NA Position Sensor Switch 8mm Detecting Distance M18 Inductive Proximity Sensor


NOTE:Please contact us for accurate delivery cost before payment.

Product Show


Product Description

Model:LJ18A3-8-
Size:
Installation modeNon-flush type
ModelDC typeNPNNOLJ18A3-8-Z/BX
NCLJ18A3-8-Z/AX
NO+NCLJ18A3-8-Z/CX
PNPNOLJ18A3-8-Z/BY
NCLJ18A3-8-Z/AY
NO+NCLJ18A3-8-Z/CY
2-wireNOLJ18A3-8-Z/EX
NCLJ18A3-8-Z/DX
AC type2-wireNOLJ18A3-8-J/EZ
NCLJ18A3-8-J/DZ
3-wireNO+NCLJ18A3-8-J/EDZ
Detection distance8mm ± 10%
Set the distance0 - 7mm
Lag distanceThe detection range below 10%
Object detectionMagnetic metal (non magnetic metal detection distance decreases)
Standard test objectIron 30*30*1mm
Frequency responseDC:0.5kHz AC:25Hz
supply voltageDC type: DC12 - 24V (6-36V) pulse (P-P) below 10%,
AC: AC110 - 220V (36 - 250V) 50/60Hz
Withstanding voltageAC1000V 50/60Hz 1min charging part and the shell.
The influence of voltageWithin the rated supply voltage range 15% rated supply voltage of + 10% detection distance
Current consumptionType N.P: 13mA, D: 0.8mA, A: 1.7mA
Output controlType N.P: 300mA, D: 200mA, A: 400mA
Loop protectionType N.P.D: reverse connection protection, surge absorption, load short-circuit protection, type A: surge absorption
The environment temperature and humidityWhen the movement, save the -30 +65 C
(ice, frost), action, save time: 35 - 95%RH
The influence of temperatureThe temperature range of -30 DEG C - +65, +23 C, + 15% detection distance
The temperature range of -25 DEG C - +60, +23 C, + 10% detection distance
Insulation resistanceThe above 50M (DC500 megameter) charging part and the shell.
texture of materialShell: nickel plated brass surface detection: ABS
Protection structureIP67 (IEC)
