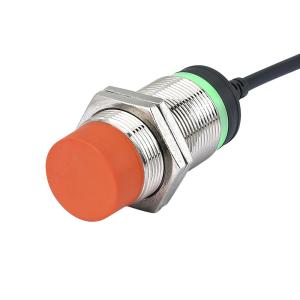

    M30 Inductive Proximity Sensor Switch 10-15mm Detection Distance LJ30A3-15-Z/BY DC Non-flush Position Sensor

    Ask Lasest Price
    Model Number : LJ30A3-15-Z/BY
    Brand Name : Kampa
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $5.50 - $6.50/Pieces
    • Product Details
    • Company Profile

    M30 Inductive Proximity Sensor Switch 10-15mm Detection Distance LJ30A3-15-Z/BY DC Non-flush Position Sensor

    Product Description
    Diameter:
    Diameter:
    M30*1
    M18 /LJ18
    Model:
    LJ30 / LM30







    Output Form:





    DC

    NPN
    NC
    LJ30A3-15-Z/AX
    NO
    LJ30A3-15-Z/BX

    PNP
    NC
    LJ30A3-15-Z/AY
    NO
    LJ30A3-15-Z/BY

    2-wire
    NC
    LJ30A3-15-Z/DZ
    NO
    LJ30A3-15-Z/EZ

    AC

    2-wire
    NC
    LJ30A3-15-J/DZ
    NO
    LJ30A3-15-J/EZ
    Specification
    Sensing Surface Type:
    Non-flush Type
    Flush Type
    Standard Detecting Target:
    45*45*1 metal
    30*30*1 metal
    Detecting Distance :
    15mm±10%
    10mm±10%
    Frequency:
    3-wire 300Hz, 2-wire 100Hz
    3-wire 500Hz, 2-wire 300Hz
    Frequency:
    AC: 20Hz
    Voltage Supply:
    10~30VDC, 90~250VAC
    Saturation Voltage (DC 3-wire):
    DC 3-wire ≤2.5V, 2-wire <6V; AC <10V
    Static Operating Current:
    <10mA
    Full-load Current:
    ≤200mA
    Output Indication:
    green LED,360°visible
    Power Protection:
    DC: reverse protection,short-circuit protection; AC: surge protection
    Withstand Voltage:
    1500V/AC 50/60Hz 1min
    Ambient Temperature:
    Storage Temperature:
    Ambient Humidity:
    -20 ~ +70℃
    -30 ~ +80℃
    35~95%
    Insulation Resistance:
    ≥50MΩ
    IP Grade:
    IP67

    Material:
    brass nickel-plated case,
    PBT detection surface,
    PVC cable
    Dimension
    Product Features
    ——Good quality, good sensing performance, anti-interference and stable output.

    —— LED (green light) indicator to show the output, 360° visible, clear and intuitive.

    Flush Type

    LJ30A3-10mm

    Non-flush Type

    LJ30A3-15mm
    —— Two types available, different detection distance.
