    4 Heads Automatic Plastic Bottle Filling Machine 600BPH

    Ask Lasest Price
    Brand Name : SUNSWELL
    Model Number : XGF
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, LC,WESTERN UNION
    Supply Ability : 100 sets per year
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    4 Heads Automatic Plastic Bottle Filling Machine 600BPH

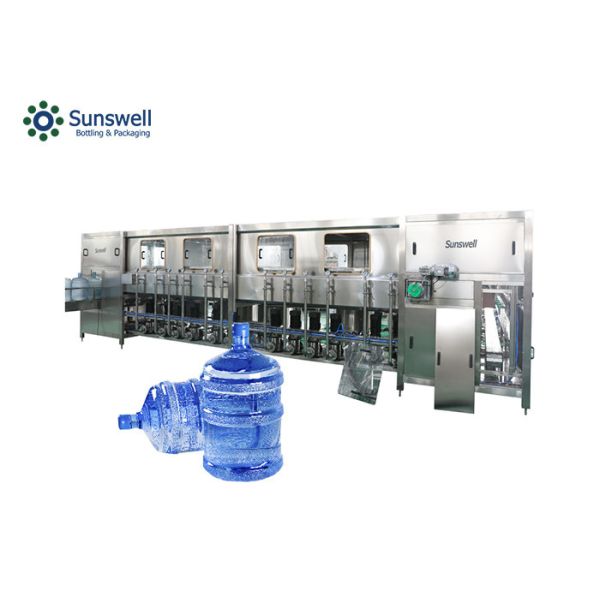

    Automatic water filling machine 5 gallon water filling machine big bottle filling machine


    The filling line special for 3-5 gallons barreled drinking water,with type of QGF-150,QGF-300,QGF-450,QGF-600,QGF-600,QGF-900,QGF-1200,QGF-1500,QGF-2000.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The Capping Machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.


    Specifications:

    Main technical data
    ModelQGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200QGF-2000
    Number of filling heads123481216
    Filling capacity18.918.918.918.918.918.918.9
    Barrel size (mm)φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490
    Production capacity (b/n)100-120200-240300-40060090012002000
    Gas pressure (Mpa)0.4-0.60.4-0.60.60.60.60.60.6
    Gas consumption (m3/min)0.370.60.61.22.234.5
    Motor power(kw)1.753.224.88.58.58.58.5
    Rated voltage (V)380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
    Overall dimension (mm)3790×650
    ×1550
    3550×800
    ×1800
    2800×1100
    ×1800
    3550×1200
    ×1800
    3800×1100
    ×1800
    3650×1500
    ×1800
    3800×1100
    ×1800
    2200×1860
    ×2700
    not include cleaning
    2560×2350
    ×2750
    not include cleaning
    3100×2800
    ×2750
    not include cleaning
