    19L 5 Gallon Water Filling Machine Monoblock 900bpm

    Ask Lasest Price
    Brand Name : SUNSWELL
    Model Number : XGF
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, LC,WESTERN UNION
    Supply Ability : 100 sets per year
    Delivery Time : 50 days
    • Product Details
    • Company Profile

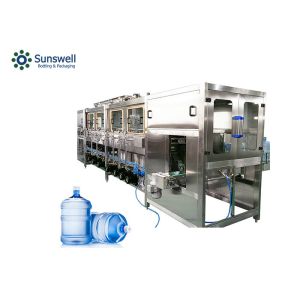

    19L 5 Gallon Water Filling Machine Monoblock 900bpm

    5 gallon Water Bottle Filling Machines Fully Automatic production Line


    Washing-filling-capping 3-in-1 Monoblock

    1. 3-rows 12-washing stops. Everything stop is about 23 seconds
    2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.

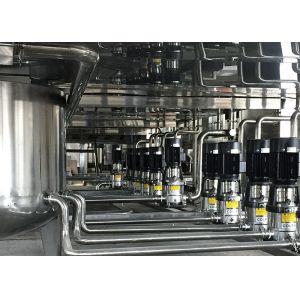

    3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
    4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
    5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
    6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows


    Specifications:

    Main technical data
    ModelQGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200QGF-2000
    Number of filling heads123481216
    Filling capacity18.918.918.918.918.918.918.9
    Barrel size (mm)φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490
    Production capacity (b/n)100-120200-240300-40060090012002000
    Gas pressure (Mpa)0.4-0.60.4-0.60.60.60.60.60.6
    Gas consumption (m3/min)0.370.60.61.22.234.5
    Motor power(kw)1.753.224.88.58.58.58.5
    Rated voltage (V)380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
    Overall dimension (mm)3790×650
    ×1550
    3550×800
    ×1800
    2800×1100
    ×1800
    3550×1200
    ×1800
    3800×1100
    ×1800
    3650×1500
    ×1800
    3800×1100
    ×1800
    2200×1860
    ×2700
    not include cleaning
    2560×2350
    ×2750
    not include cleaning
    3100×2800
    ×2750
    not include cleaning
