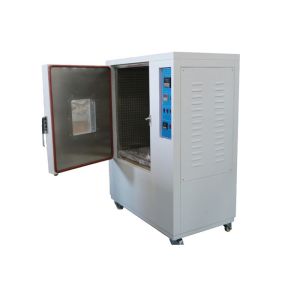

    IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L


    IEC 60065 Clause 12.1.6 Natural Circulation Air Ageing Heating Chamber 240L


    Product Information:

    It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and etc.


    Features:

    1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.

    2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

    3. P.I.D. control system, double over-temperature protection, safe and reliable.

    4. The temperature setting is simple, and the operation is more convenient.

    Attachment tray, can be adjusted freely.


    Technical Parameters:

    Applied standardIEC 60065
    Applied clause12.1.6
    The range of temperatureRT ~300℃
    Inner chamber size500*600*800mm (L*W*H)
    Outer chamber size1060*700*1445mm
    The test shelves2 trays
    Timer0~9999 H/ M / S
    Temperature resolution0.1 ° C
    Temperature fluctuation±1 °C
    Distribution error±2.5 °C
    Air circulationNatural convection
    Natural ventilation8~20 times/H
    Rotation speed of the test sample5~10r.p.m
    Observation windowSquare window
    Inner chamber materialIt is made of SUS#304 stainless steel
    Outer chamber materialMade of electrostatic spray paint
    Net weightApprox. 120Kg
    Power supplyAC 220V±10%, 50Hz
