    SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-MH4K
    Certification : CE,FCC,RoHs
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 2000 pairs/month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km

    HDMI Over Fiber Optic Extender Micro 4K USB Port HDMI Fiber Optic Converter


    HDMI Fiber Converter Advantages


    ► HDMI 1.4a and HCCP1.2 Support

    ► Uncompressed transmission, No delay, No losses

    ► DDC CEC HPD Signal Support

    ► Supports all modes up to 4K*2K@30Hz Resolution


    Technical indexes


    Type of ExtenderFiber Transmitter for HDMI signal over Optical Fiber Cable
    Input SignalsHDMI
    Video Support1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
    Audio SupportDolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
    Transmission Distance300m (Over OM3 Fiber)
    Up to 80km (Over Single-mode Fiber)
    Operating Temperature-10 to + 60°C
    Storage Temperature-20 to + 85°C
    Humidity5% to 90% RH (non-condensing)
    MTBF100,000 hours

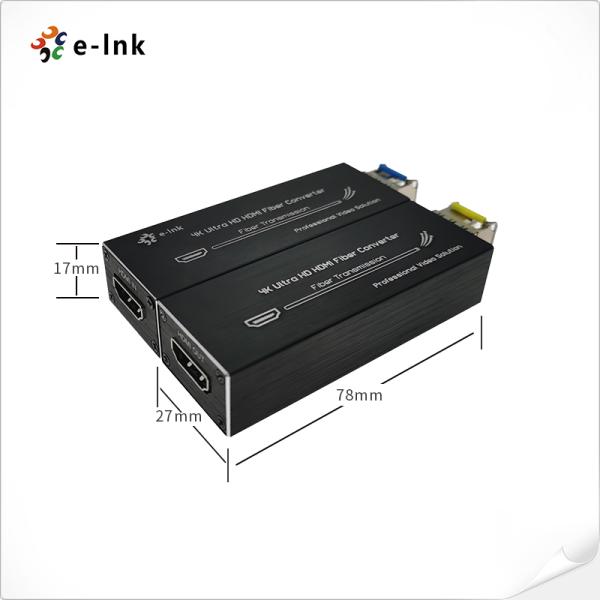

    Dimension (WxDxH)3.07 x 1.06 x 0.69in (78x27x17mm)
    Weight50g / 0.11 lb

    Overview


    The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.



    Ordering Information


    Model

    Description

    LNK-MH4K-MM

    Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input

    LNK-MH4K-S20

    Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input

    LNK-MH4K-S40

    Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input

    LNK-MH4K-80

    Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input

    LNK-MH4K-S80

    Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
