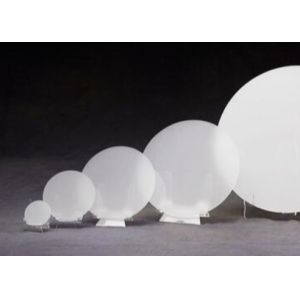

    Buy cheap 100mm Single Crystal Sapphire Wafer 99.995% Al2O3 from wholesalers

    Buy cheap 100mm Single Crystal Sapphire Wafer 99.995% Al2O3 from wholesalers
    • Buy cheap 100mm Single Crystal Sapphire Wafer 99.995% Al2O3 from wholesalers

    100mm Single Crystal Sapphire Wafer 99.995% Al2O3

    Ask Lasest Price
    Brand Name : Silian
    Model Number : 100mm /4 inch
    Certification : SGS/ ISO
    Price : by case
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 20,000 pcs/month
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    100mm Single Crystal Sapphire Wafer 99.995% Al2O3

    Dia 100 mm 4 inch Sapphire Substrate Wafer Single Side Polished


    Specification


    Orientation(22-43)Plane offcut 0.45° away from C plane-per sketch 22-43
    Diameter100mm ± 0.2mm
    Thickness650um ± 20um / 850um ± 20um
    Bow<10 microns
    Warp<20 microns
    TTV<10 microns
    Major FlatM-axis +0.3°; 32+1mm
    Minor FlatNone
    Front Side< 0.30nm
    Back Side<1.2 micron
    Laser IDmarked on backside by major flat
    PackagedCassette containing 25 wafers(s), Class 100 cleanroom envirnment

    Orientation: (22-43)Plane offcut 0.45° away from C plane-per sketch 22-43

    Diameter: 100mm ± 0.2mm

    Thickness: 650um ± 20um / 850um ± 20um

    Bow: <10 microns

    Warp: <20 microns

    TTV: <10 microns

    Major Flat: M-axis +0.3°; 32+1mm

    Minor Flat: None

    Front Side: < 0.30nm

    Back Side: <1.2 microns

    Laser ID: marked on backside by major flat

    Packaged: Cassette containing 25 wafers(s), Class 100 cleanroom envirnment


    Process Flow

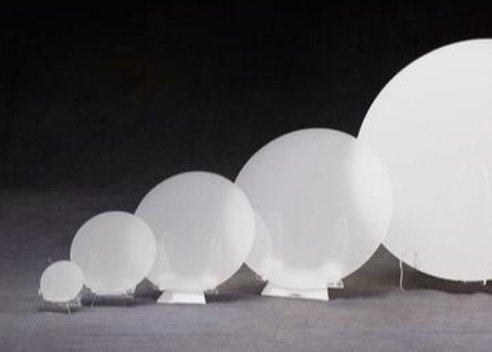

    Quality 100mm Single Crystal Sapphire Wafer 99.995% Al2O3 for sale
