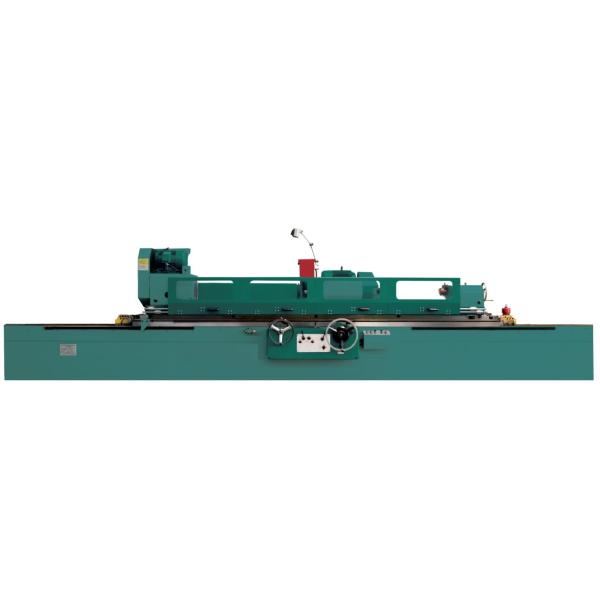

    M1332 Cylindrical Grinding Machine M1332A IT6 - IT5 Hydraulic Grinder Machine

    Ask Lasest Price
    Brand Name : HD
    Model Number : M1332/M1332A
    Certification : CE, ISO certification
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    M1332 Cylindrical Grinding Machine M1332A IT6 - IT5 Hydraulic Grinder Machine

    China Factory M13 Series M1332/M1332A Cylindrical Grinding Machine Price


    This series of cylindrical grinders use electrical and hydraulic interlocking mechanisms with various moving parts, which are safe and reliable to operate. It is suitable for grinding IT6-IT5 precision cylindrical or conical rotary workpieces. It is suitable for single-piece and batch production workshops.


    Standard accessoriesOptional accessories
    Cooling water tankLeveling pad ironWheel balancing standClosed center rest
    External circle dresserWorking lightMagnetic sepatatorEnd face wheel dresser
    Grinding wheel chuck and
    handling tools
    Open center frameMagnetic separator
    belt filter
    Radius wheel dresser
    Open center frame standardcentergrinding center device
    Balance shaftinternal round abrasives(only M14 series)

    Main Technical Parameters

    General capacityITEMUNITM1332M1332A
    Distance between centersmm1000, 1500, 2000, 30001000, 1500, 2000, 3000
    Center heightmm180180
    Dia. Ground(O.D)mm8-3208-320
    Max. length ground(O.D)mm1000, 1500, 2000, 30001000, 1500, 2000, 3000
    Max. weight of work piecekg150500

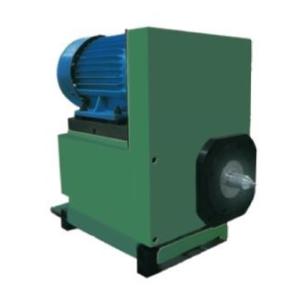

    Work headCenter taperMT55
    Spindle speedr/min26/52/90/130/180/26026/52/90/130/180/260
    Wheel headSwiveling angler/min11001100
    Wheelhead rapid travelmm5050
    Max. travelmm235235
    Hand feed per.revRough 2/finish 0.5Rough 2/finish 0.5
    Hand feed per.graRough :0.01 finish :0.0025Rough :0.01 finish :0.0025
    Wheel size (ODxWxID)mm600X75X305600X75X305
    Peripheral velocitym/s3535
    TableHand feed per.rev66
    Max. swiveling angle of tableCockwise°
    Anticlockwise°(1000),6° (1500)
    5° (2000)
    ,3° (3000)
    (1000),6° (1500)
    5° (2000)
    ,3° (3000)
    Longitudinal speed range of tablem/min0.1-40.1-4

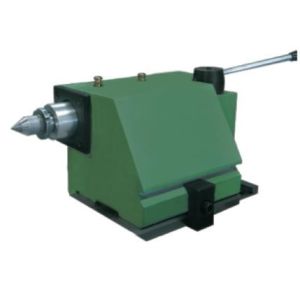

    TailstockCenter taperMT44
    Quill travelmm3030
    MotorWheelhead motor powerkW1111
    Workhead motor powerkW0.85/1.51.5/2.4
    MachineGross weightt3.5(1000),4.6(1500)
    7.9(2000)
    ,9.9(3000)
    5.3(1000),6(1500)
    7.9(2000)
    ,9.9(3000)
    Packing dimensioncm326 x 200 x 205(1000)
    426 x 200 x 205(1500)
    540 x 200 x 205(2000)
    739 x 200 x 205(3000)
    326 x 200 x 205(1000)
    426 x 200 x 205(1500)
    540 x 200 x 205(2000)
    739 x 200 x 205(3000)

    About us

    Our company is located in Shanghai, the largest seaport and economic center in China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling machining center and various high quality CNC machines.


    We have our own factory and product’s brand “ HD Tech”. The machine tools with “HD Tech” brand have very economical price and excellent quality. We also take the mission of selling the machine tools with leading technology and high quality in China to foreign countries. We are the primary agent of SYMG Group,SMTCL Group and DMTG Group etc. , which are the most famous and largest machine’s tool factory in China.
