    2~8 Watt Adjustable COFDM Transmitter , 1080p wireless transmitter HD - SDI Output

    Ask Lasest Price
    Brand Name : Kimpok
    Model Number : KP-HDB50
    Certification : CE/FCC/ROHS
    Price : Negotiaiton
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 1,000pcs per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    2~8 Watt Adjustable COFDM Transmitter , 1080p wireless transmitter HD - SDI Output


    2~8 Watt Adjustable COFDM Transmitter , 1080p wireless transmitter HD - SDI Output

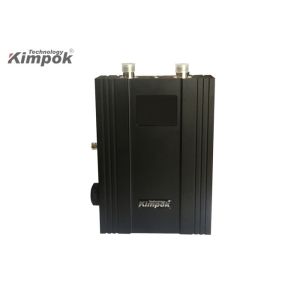

    KP-HDB50 Such a new 1080P HD transmitter is our powerful HD av signals transmit system,using the core of mobile communication technology COFDM,which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.2-8W rf power output adjustable.Support full HD 1080P(1080i) H.264 encoding format and HD/HD-SDI inputs (single selection) as well support BNC stereo balance audio input .The base of the transmitter with 4 holes is good for fixed installation.


    Main Features:

    1. COFDM modulation technology insure the stability of signal
    2. Support FULL HD quality,1080i/P@30fps;
    3. Built-in with HDM or HD-SDI and BNC composite ports;
    4. SDI HD video,embedded audio and composite video input
    5. It will be HD1080i transmission when the RF bandwidth is 4/8MHz.
    6. 2-8W RF power adjustable
    7. Low delay time
    8. With 4 holes at the bottom for fixed installation
    9. Widely used in helicopter shooting,Live broadcast and etc…

    Special Features:

    • 2-8W RF power output
    • Low delay time
    • COFDM modulation, stability of signal
    • Support Full Hd quality, 1080i/P@30fps;
    • Built-in with HDM/HD-SDI and BNC composite ports;
    • With 4 holes at the bottom for fixed installation
    • Widely used in UAV shooting, Live broadcast and etc...

    Specifications:


    Power supply
    DC InputDC11-16V
    Working Current1.9A@12V
    Video transmission:
    Frequency range Output

    300-800MHz (optional),

    1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)

    ModulationCOFDM,2K ,QPSK
    RF bandwidth4/8MHz(adjustable)
    RF Power output2-8W (adjustable)
    SHG>52dBc
    EncryptionAES128/256bits
    ConstellationQPSK, 16QAM, 64QAM
    FEC1/2,2/3,3/4,5/6, 7/8
    Guard Interval1/32,1/16,1/8,1/4
    Carrier2K,8K
    FlatnessFull band≤2dB, 8MHz≤0.5dB
    AV inputBNC: D1 standard definition
    HD: HD1080i/1080P, 720P, 576, 480
    HD-SDI: HD1080i/1080P, 720P, 576, 480
    CNR(weighting)58dB
    Sloping field SNR(unweighted)≥50dB
    Audio transmission
    Balanced audio input rangeVmax=±15V
    Unbalanced audio input rangeVmax=3Vpp
    Audio channelStereo L/R audio channel
    StandardSMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
    Input range800±80(mV)
    Encoding
    Audio encoding modeMPEG1 Layer2
    CBER<2.0E-4
    Video resolution

    Minimum 1280*720@50i

    Maximum 1920×1080P/I@60hz

    Video codingH.264
    Video rate500kbps-16.68Mbps(autoadaptation)
    Max speed rate450km/h
    FormatYCbCr4:2:2
    Working Environment
    OperatingTemperature-25°C~55°C
    Storage Temperature-40°C~70°C
    Appearance
    Dimension190*120*60mm
    Weight1400g

    HD Video Transmitter application:


    1) For helicopter shooting:


    HD / HD-SDI COFDM Video Transmitter H.264 Wireless Live Broadcast Transmission


    2) For Man pack :


    HD / HD-SDI COFDM Video Transmitter H.264 Wireless Live Broadcast Transmission
