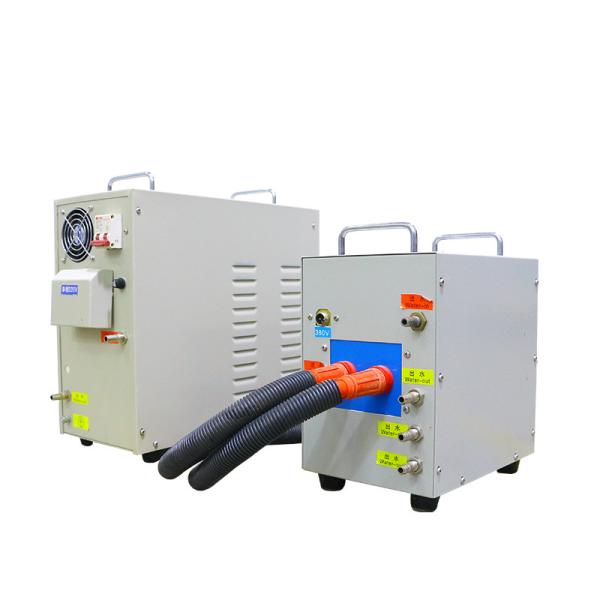

Surface Quenching 20KW Induction Heating Equipment With Transfomer
Description and Advantages of induction heating equipment:
1. Adopts the latest MOSPET, IGBT power units and frequency
conversion control techniques with high efficiency, low energy
consumption and higher output power.
2. With constant current and constant power control function to
greatly optimize the heating process of metals, realize efficient
and fast heating, and fully exert the superiority of the products.
3. Power consumption is half of traditional electron tube high
frequency induction heating equipments under same conditions.
4. With 100% load design, can work in 24 hours without stop.
Infrared temperaturedetector can be equipped to realize the
automatic control of temperature, improve heating quality and
simplify manual operation.
5. With heating-insulating-cooling three stages function setting,
the heating and insulating time required can be get to accommodate
to the batched and repeated heating situations.
6. With multiple status display of overflow, overvoltage, low
water, phase failure and load malfunction, providing higher
reliability and sustainability.
7. Select power supply according to the power and frequency. The
higher the frequency, the shallower the heating depth, and the
lower the frequency, the better the diathermancy.
Technical parameters of induction heating equipment:
Item Model | GP-20 |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(kVA) | 2~20 |
| Input Oscillation Frequency(kHz) | 30~110 |
| Load Duration | 100% |
| Cooling Water Pressure(Mpa) | 0.05~0.15 |
| Output Water Flow(L/Min) | 5~10 |
Dimension(L×W×H)
| 420×240×400 |
Applications of induction heating machine:
Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials
through the heat treatment to work pieces. Detail applications are
stated as follows:
1. Quench for various hardware and tools, such as plier, wrench,
hammer, ax, screwing tools and shear (orchard shear).
2. Quench for various automobile and motorcycle fittings, such as
crankshaft, connecting rod, piston pin, chain wheel, aluminum
wheel, valve, rock arm shaft, semi drive shaft, small shaft and
fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such
as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold
accessory and inner hole of mold.
