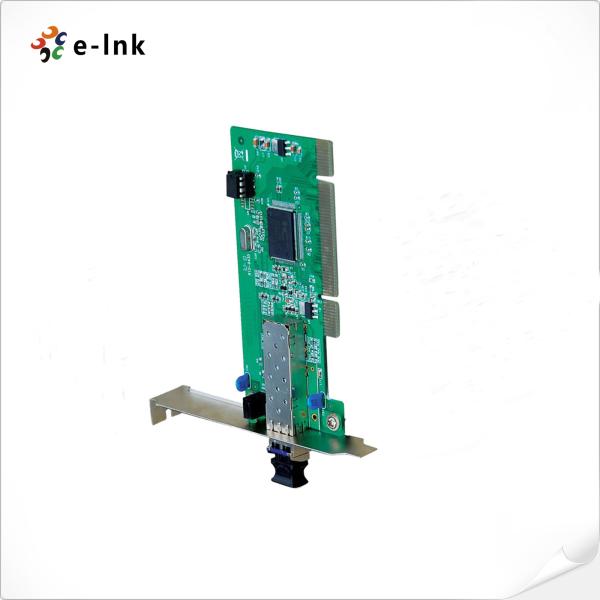

Accessories 1000M Single Port Fiber Gigabit PCI-E NIC LAN Card, SFP Slot
Accessories Advantages:
Eliminate server bottlenecks and migrate existing Category-5
networks to 1000M Gigabit Ethernet easily and cost-effectively
with the LNK-LC1000 Series Sever Adapter. Featuring flexible,
auto-negotiating performance, the LNK-LC1000 NIC (Network
Interface Card) is designed to automatically scale with growing
networks. The Adapter integrated hardware acceleration that
performs TCP/UDP/IP checksum offload and TCP segmentation. The host
processing offloads accelerators frees CPU for
application processing. Supports advanced Networks software suite
that includes increased fault tolerance, bidirectional load
balancing, port aggregation, Jumbo Frame support, VLAN and server
management software. With a flexible design that fits
almost any type of PCI bus, the standards-based management features and
wide network operating system support
help to ensure extensive compatibility with the latest server and
networking environments.
Technical Indexes
| Product Model | LNK-LC1000 Series: Single Port Fiber Gigabit PCI-E NIC |
| Standards | IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p,
IEEE802.1z |
| Max Frame Size | 9216B |
| Port Numbers | LNK-LC1000-SC Series: SC Connector*1( Duplex Fiber / Single Fiber
Optional) |
| LNK-LC1000-SFP Series: SFP*1( Duplex Fiber / Single Fiber Optional) |
| Media | Single Mode Fiber, Multi Mode Fiber |
| Transmitting Distance | Single Fiber SMF, 1310nm/1550nm(1490nm),20/40/60km |
| Duplex Fiber SMF, 1310nm or 1550nm(1490nm), 20/40/60/km |
| Duplex Fiber MMF, 850nm, 275~550m |
| Data Speed | 1000Mbits/s (Half duplex), 2000Mbits/s (Full duplex) |
| BUS Slot | PCI-E x1 Standard Slot |
| Consumption | Max. 5.3W, +3.3VDC@1.6A |
| Ambient Temperature | Storage Temperature:-20℃～65℃； Storage humidity:5％～90％ RH
Non-condensing |
| Operation temperature:0℃～50℃；Operation humidity:10％～90％ RH
Non-condensing |
Overview
E-link LNK-LC1000 Series Single Port Fiber Gigabit PCI-E NIC
(Network Interface Card) have two kinds of interface:
1X9 Module with SC Connector and SFP Module. It is a Fiber Gigabit
Ethernet to PCI-EX1 bus adapter that fully complies
with all IEEE 802.3z and 1000Base-SX/LX standards. LNK-LC1000-SC
Series Single Port Fiber Gigabit PCI-E NIC support
one SC Fiber port (Duplex Fiber/ Single Fiber Optional).
LNK-LC1000-SFP Series Single Port Fiber Gigabit PCI-E NIC (Network
Interface Card) support one SFP port (Duplex Fiber/ Single Fiber
Optional). It can offer 1000Mbps Internet access, It provides up
to 2000Mbps full-duplex bandwidth capacity to support high-end
servers. In addition, with advanced functions like VLAN filtering
packet processing, the adapter provides added performance, flexible
configuration and secure
networking for users in a standard-based environment.
Ordering Information
| Model | Description |
| LNK-LC1000-SC | 1000M Fiber Optic LAN Card, 850nm, Duplex Fiber, MMF, SC Connector,
Transmitting Distance: 550m |
| LNK-LC1000-SC-20 | 1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SC
Connector, Transmitting Distance: 20Km |
| LNK-LCS1000-SC-20 | 1000M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF,
SC Connector, Transmitting Distance: 20Km |
| LNK-LC1000 -SFP | 1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SFP*1,
Transmitting Distance: 2Km |
| LNK-LC1000 -SFP-20 | 1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SFP*1,
Transmitting Distance: 20Km |
| LNK-LCS1000-SFP-20 | 1000M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF,
SFP*1, Transmitting Distance: 20Km |
