    St 450 Water Well Drilling Rig Machine Oem Crawler Mounted

    Ask Lasest Price
    Brand Name : Shitan
    Model Number : ST-450
    Certification : ISO 9001
    Price : 75000 USD
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 sets/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    St 450 Water Well Drilling Rig Machine Oem Crawler Mounted

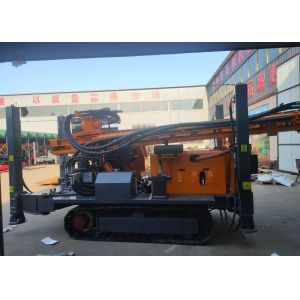

    ST 450 High Speed Water Well Drilling Equipment ,OEM Crawler Mounted Drilling Rig Machine


    ST 450 Pneumatic Drilling Machine Introduction

    The drilling rig is a light, efficient and multifunctional drilling equipment. It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially for water intake projects in mountainous areas and rock strata. The efficiency is more than ten times higher than the traditional rotary drilling rig, and the economic benefits created for users are very considerable.

    ST 450 Pneumatic Borewell Machine Technical Data:

    Drilling Rig Mode NameListST 450
    Max drilling depthM450
    Drilling diametermm105-325
    Air pressureMpa1.2-3.5
    Air consumptionm3 /min
    16-55
    Drill pipe lengthm6
    Drill pipe diametermm89/102
    Axial pressureT4
    Lifting forceT22
    Fast lifting speedm/min
    29
    Fast feeding speedm/min
    56
    Max rotary torqueNm8000/4000
    Max rotary speedr/min75/150
    Big auxiliary winch lifting forceT-
    Small auxiliary winch lifting forceT1.5
    Jacks strokem
    1.6
    Drilling efficiencym/h10-35
    Driving speedKm/h
    2.5
    Uphill angleslope21°
    Weight of drilling rigT
    9.8
    Dimensionm6.2*1.85*2.55
    Working conditionUnconsolidated formation and bedrock
    Drilling methods
    DTH hammer or mud drilling
    Matched DTH hammerMedium and high air pressure series


    ST 450 Pneumatic Borewell Machine Advantages:

    1.Four independently operated large bore hydraulic jack cylinders, and the main engine can rise and fall automatically through hydraulic drive; Users can choose high outriggers according to their own needs, and the lifting height can reach 1.5m. It can simply complete loading and unloading, and completely solve the troubles of user equipment transfer.
    2. The four leg cylinders can be controlled separately to facilitate the adjustment of the vertical angle between the borehole and the ground during drilling, and ensure the stability of the whole machine during drilling.
    3. The two-stage air filter intake design ensures the normal service life of diesel engine and air compressor under harsh construction conditions.
    4. The main shaft of the power head realizes six gear rotation and stepless adjustable propulsion speed, which can meet the drilling needs of various complex strata such as soil layer and rock layer, so that the drill has a very wide range of applicability.
    5. Centralized control hydraulic console for easy operation. Two sets of four pumps are designed to facilitate maintenance and reduce maintenance cost.
    6. This series of drilling rig adopts excavator crawler chassis, with strong off-road performance and convenient transfer.
    7. The newly designed drill pipe hoist makes the loading and unloading of drill pipe faster and lighter.
    8. (optional) it is equipped with arc welding generator to facilitate on-site welding maintenance and provide night construction lighting
    FAQ ST 450 Pneumatic Borewell Machine
    1. Are you manufacturer or trade company?
    We are a direct professional factory
    2. What about the Minimum order quantity?
    The MOQ is 1 set.
    3. Could your company offer customize service to customers ?
    Yes, we offer customize service.
    4. What is your terms of payment?
    Trade Assurance, T/T, Credit Card.
    5. What is your terms of delivery?
    EXW, FOB, CFR, CIF.
