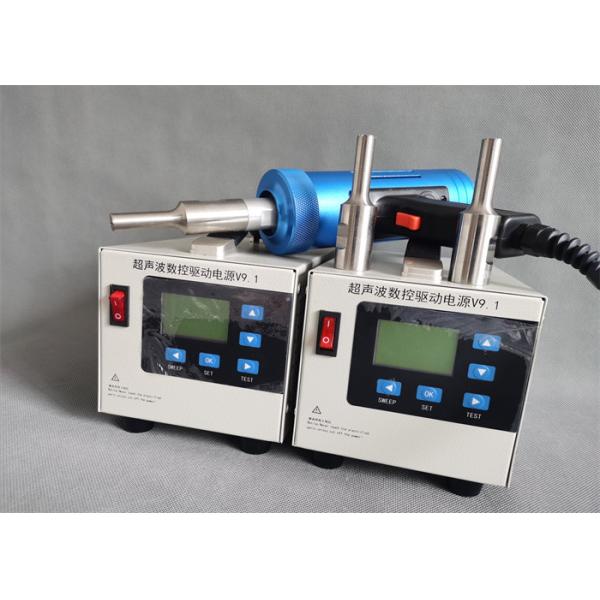

Cheap Ultrasonic Welder with Digital 28Khz Frequency Tracking
Adjusting System
Description:
Ultrasonic handheld spot welding adopts straight-handle or pistol
design, which is more convenient to operate. The welding effect is
controlled manually, which is easy to operate and does not require
the use of cylinder pressure. The piezoelectric ceramic transducer
is specially used, and the output is stable and strong. The
electric box adopts an automatic compensation circuit, which can
freely adjust the power to achieve a uniform spot welding effect.
Specifications:
| Item No | QR-W28AY |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 28KHZ |
| Voltage | 220V or 110V |
| welding head | Aluminum or Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type |
Frequency
(Khz) | 35 | 28 | 28 | 28 | 20 | 28 | 28 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — |
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC,
PSU,PA |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding |
Main features:
Product design is compact, beautiful in appearance, stable in work,
and easy to install
It can be used for welding and riveting of thermoplastic products,
as well as the inlay and edge pressing process between metal parts
and plastic parts. Has completely replaced the organic melting
point agent paste process. It has the characteristics of low energy
consumption, high efficiency, no deformation, no pollution, firm
welding, and convenient operation.
It can be used not only for welding metals, hard thermoplastics,
but also for processing fabrics and films. The handheld ultrasonic
welding gun can replace different ultrasonic welding heads
according to the size of the riveting point and welding
requirements of the product to be welded. It is fast and
convenient, and the cost is much lower than that of a special
ultrasonic welding machine for automobile door panels, which is
convenient to meet the needs of different customers. need.
Application range:
Electronic appliances, auto parts, clothing packaging, textile
industry, environmental protection industry, medical equipment, toy
industry, communication equipment and other industries.
Plastic hardware riveting, spot welding, embossing, folder
positioning and other processes, decoration, ribbon flower spot
welding, riveting, etc.
