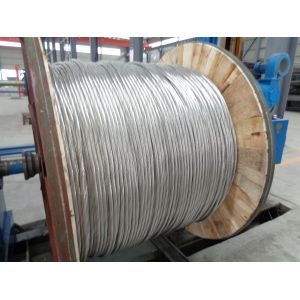

Factory Supply Best Conductor Bare ACAR Aluminium Conductor Alloy
Conductor For Overhead Wire
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
Description of Almelec Cable
AAAC conductor are made out from aluminum-magnesium-silicon alloy
of high
electrical conductivity (min 53% IACS) containing magnesium
(0.6-0.9%) & silicon (0.5-0.9%) to give it better mechanical
properties after treatment. AAAC conductors are made out of
aluminum alloy 6201. AAAC conductor has a better corrosion
resistance and better strength to weight ratio and improved
electrical conductivity than ACSR conductor on equal diameter
basis.
Key Benefits of Almelec Cable
High tensile strength as compared to AAAC conductor.
Higher conductivity as compared to ACSR conductor.
Better corrosion resistance than ACSR conductor.
Physical Contents of Alluminium Alloy :
Density : 2.70 kgm/dm3 at 20°C
Coefficient of Linear Expansion : 23 x 10-6 / °C
Resistivity : 0.0326 Ohms mm2/m at 20°C
Constant Mass Temperature Coefficient (a) : 0.00360/ °C
Material : Heat treated Al. Mg. Si. Alloy
1.ACAR is widely used in power transmission lines with various
voltage levels, and also used in power lines across great rivers,
heavy ice area, etc. with special geographical situation.
2.ACAR Conductor has excellent advantage of high strength, large
current carrying capacity and good catenaries property as well as
wear-resistance, anti-crush and corrosion-proof with simple
structure, convenient installation and maintenance, low cost for
the line, large transmission capacity.
3.ACAR consists of a galvanized steel core of 1 wire , 7 wires or
19 wires surrounded by concentric layers of aluminium wire . When a
conductor with a high current carrying capacity and comparatively
low strength is required , special constructions are available with
a high aluminium content.
4. Producing Process:
5.Our Products:
6.Packaging & Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
