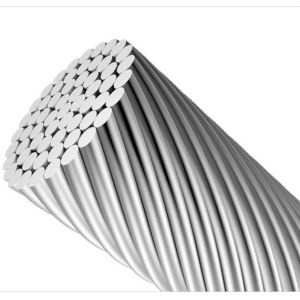

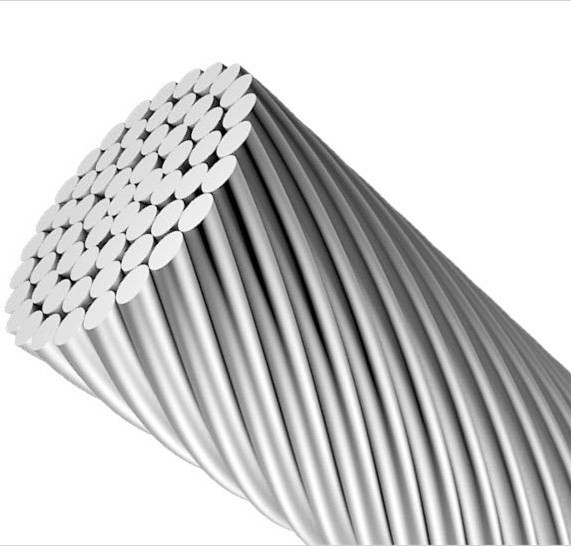

AAC Bare Aluminum Overhead All Aluminum Stranded Conductor ASTM
Standard
The AAC conductor is made of 1350 aluminum. The 9.5mm aluminum rod
is made into aluminum monofilament after the wire drawing process.
Its diameter is based on the conductor diameter required by the
customer, after stranding, it becomes conductor.
AAC conductors have good mechanical properties and electrical
conductivity, and are mainly used in power transmission lines, such
as transmitting power from remote hydropower stations, thermal
power plants or nuclear power plants to substations in the suburbs
of cities.
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
Description
1. Applications:
ACAR is used as bare cable for overhead transmission and
distribution lines and also as bus-bar in substations where is
highly suitable considering the mechanical and electrical
characteristics.
As comparison with ACSR of same weight, ACAR can offers higher
mechanical strength.
2. Features :
Aluminum Conductor Alloy Reinforced (ACAR)
cable is an excellent conductor choice where current
carrying capacity, higher strength and a lower conductor
weight are critical to the line design.
3. Construction:
Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium
Alloy 6201 core. The number of wires of each one depends on the
cable design.
In some cable constructions the wires of Aluminium Alloy 6201 can
be distributed in layers throughout the Aluminium 1350-H19.
Producing Proces
Our Products
Packaging & Delivery
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shipment.L/C is also available.
