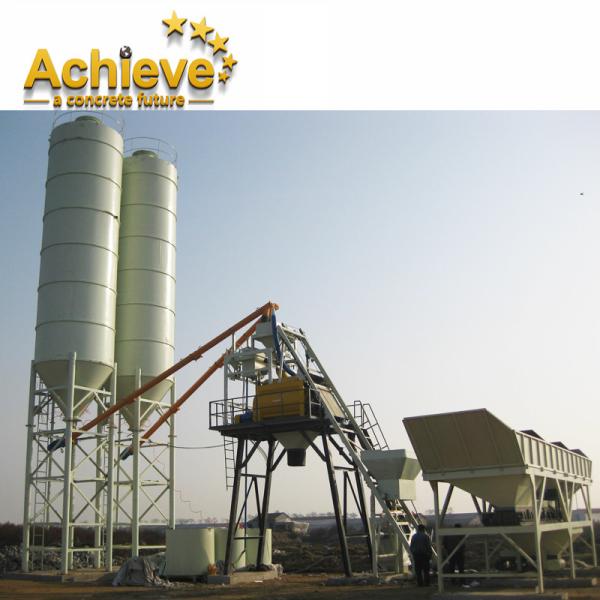

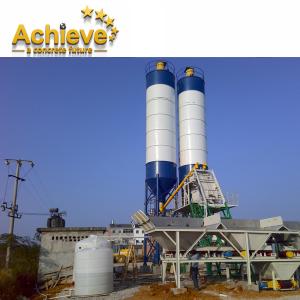

HZS25 concrete batching plant Product configuration:
1.mixer
Achieve HZS25 ready mixed concrete batching plant Configure the JS500 mixer,
Double horizontal shaft forced mixing mixer.
- Keeping high-speed shafts synchronous, decelerated by closed type
planetary gear
- Adoption of patent technology of sealing by air pressure
- Adoption of special liner with high Mo. High Cr and high Ni.
- Adoption of multi-mixing blades for more uniform concrete mixing
- Adoption of monolithic cast and equal strength designed mixing
arms
2. Control system
Achieve HZS25 batching plant Configure the Manual operation panel.
3. Aggregate lifting hopper conveyor
Achieve HZS25 bucket lift type concrete batching plant ,adopts the bucket lifting system.
4. Aggregate batching machine
Achieve stationary concrete batching plant HZS25 aggregate batching machine
consists of: aggregate silo, weighing hopper, aggregate conveyor,
sensor, etc.
5. Bolted Cement SILO
6. cement screw conveyor
HZS25 concrete batching plant basic Specification:
| MODEL | HZS25 |
| Theoretical production(m3/h) | 25 |
| Mixer | Model | JS500 |
| Power(kw) | 18.5 |
| Output(L) | 500 |
| Batcher | Hopper capacity(m3) | 8 |
| Hopper quantity | 3 |
| Hopper Quantily | 100 |
| Weighing Scope And Accuracy | Aggregate(kg) | 1500±2% |
| Cement(kg) | 400±1% |
| Powder(kg) | 200±1% |
| Water(kg) | 200±1% |
| Admixture(kg) | 10±1% |
| Total Power(kw) | 48 |
| Discharge Height(m) | 3.8 |
Note: 1.The total power does not include the power of screw conveyor; 2.The quantity of hopper can be designed as required; 3.All above specifications are subject to alteration without
notice. |
