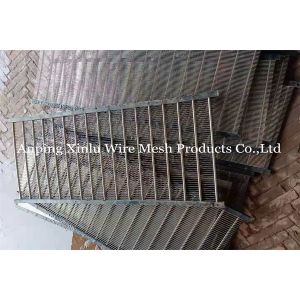

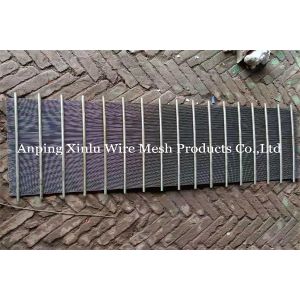

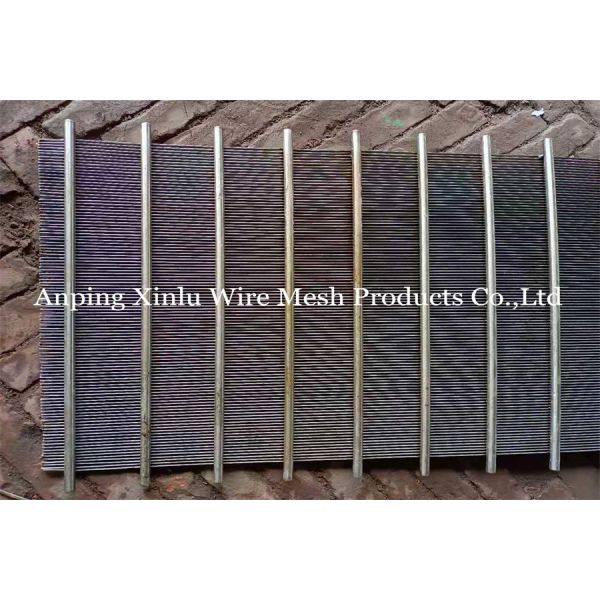

Industrial Filter 304 Stainless Steel Wedge Wire Support Grating
Produce Name: wire wrapped panel, Johnson Screen plate, flat wedge
wire panel with frame, Johnson screen flat panel, flat panel
screens, sieve bend, arc screen, slot wire screen plate, stainless
steel wire sieve, sieving wire mesh, wide slit screens, vibrating
sieve screen
Stainless Steel Wedge Wire Screen Panels For Industrial Filter
Wedge Wire Support Grating Introduction:
1. Wedge Wire Support Grating also be named Vee-Wire screen panel
,Continuous slot Vee-wire screen plate,
Wire wrapped screen plate,Wire wound screen panel ,water filter.
2. It is made up of Vee-shaped wrapped wire and round rod in each
intersection,welded together.
Accurate slot and high filtration precision.
Wedge Wire Support Grating is a metal mesh structure element used
for screening and filtering. Suitable for screening, filtration,
dehydration, desliming and other operations in many industries. It
has the strength, stiffness and carrying capacity to be made into a
variety of shapes of rigid screening filtration devices.
Characteristic of Stainless steel Wedge Wire Support Grating:
1.) Wedge wire screen style isn't easy to be locked.
2.) Due to the different pressure between inside from outside,it
could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters,we promise the
best quality to have a high filtering accuracy, high strengh and
durability.
4.) We have the most advanced equipments and the most professional
workers , so totally could be as per customer's drawing to produce
new styles .
Uses of stainless steel Wedge Wire Support Grating:
Use in the field of process, engineering such as sugar juice
filtration, waste water treatment, crude oil and natural gas
production and vessel internals solving problems of solid / liquid
and solid / gas separation, filtration of oils, greases, paints,
food products, water, fuels, liquid cooling agents, chemicals etc.
Wedge Wire Support Grating Specification:
Material:stainless steel 304,316,316L
Slot size(Opening):0.3-10mm or customer's requirement
Support Rods pitch: 45mm or customer's requirement
Wedge wire size:3x4.6mm, 3x6mm or others
Support Rods size:round wire 6-12mm or others
Panel width: up to 90 mm.
Panel length:up to 1300 mm.
| PROFILE WIRE | | | | | | |
| WIDTH(mm) | 3 | 3 | 3.2 | 3 | 3.70 | 3.30 |
| HEIGHT(mm) | 4.6 | 5 | 5.5 | 6 | 5.60 | 6.30 |
| SUPPORT ROD | |
| Round (mm) | Ø6--Ø12mm |
| Slot(mm) | 0.3-2mm |
| Width | 90cm, up to 1m |
| Length | 130cm, up to 2m |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass
production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to
arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap
wire, johnson type screeen, water well screen / rod based wire
wrapped screen, wedge wire screen, reverse wedge wire screen,
stainless steel strainer pipe, v wire slot tube, perfect roundness
well screen pipe, dewatering well screen, dewatering screen panel,
wedge wire grating, v wire flat panel, screen nozzle, water and gas
strainer nozzle, stainless steel filter nozzle, wedge wire support
grids, sieve bend plate, v wire screens, ARC screen, filter bottom
nozzle, stainless steel lateral screens, wedge wire filter candles,
Rotary drum screens, strainer cylinder, sand control well screen,
oil well screen, rod based continuous slot screens, header and hub
laterals & hub radial laterals etc.
