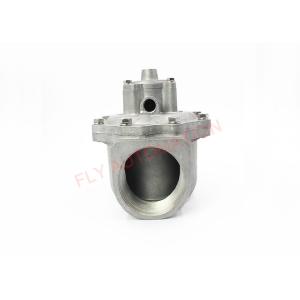

AUTEL AE2460B 2 1/2“ PULSE JET VALVE M/D 60 M/D 20 Screwed
Connection
Description
High perform ance diaphragm valve with threaded ports. Available
with
integral pilot or as remotely piloted valve. Outlet at 90° to
inlet.
1. The pulse valves are especially designed for dust collector
service
applications, combining high flow, long life and extremely fast
opening and
closing to produce reliable and economical operation
2. The high flow, angle type bodies in combination with the special
main
diaphragm assemblies give the unique operating features required
for dust
collector service applications
3. Integral compression fittings for fast, easy, secure
installation
4. Valves can be supplied according to A TEX Directive 94/9/EC for
non-electrical equipment by using suffix GD
5. The components satisfy all relevant EC directives
VALVE TECHNICAL FEATURES
| Features | | Values |
| Out | | 2 1/2“ Air |
| In | | 2 1/2" Filtered Air |
| Working Pressure | | 1.5-8 bar |
| Standard Temperature Range | |
-40 °C to +100°C |
| High Range Temparature | | ‘-20 °C to +200°C |
| Flow Rate KV | | 114 m^3/h |
| Weight | | 3.28 kg |
| Protection Level | | IP65 |
| Air quality classes (ISO 8573-1) | For Solid | 2 |
| For Water withT > +3°C | 4 |
| For Water with -20°C< T< +3°C | 3 |
| For Water with -40°C<T< -20°C | 2 |
| For Oil | 1 |
Dimensions: (mm)
Part List:
| No. | Description | Material |
| 1 | Screw M6 | SS |
| 2 | Washer | SS |
| 3 | Cover 3/4" | Die Cast Aluminum |
| 4 | Diaphragm 3/4" | TPE |
| 5 | Screw M8 | SS |
| 6 | Washer | SS |
| 7 | Cover 2 1/2“ | Die Cast Aluminum |
| 8 | Spring | SS |
| 9 | Spring | Spring |
| 11 | Body 2 1/2" Screw | Die Cast Aluminum |
| 10a | STD Diaphragm 2 1/2” | TPE |
| 10b | HT Diaphragm 2 1/2“Kit | VITON+PTFE |
| E | Optional Fitting | Nickeled Brass |
