    ​​Professional Insulated Hoisting Tackle For Live Line Maintenance

    Ask Lasest Price
    Brand Name : Suntech
    Model Number : QHJ
    Certification : ISO9001
    Price : Get the newest prices
    Payment Terms : L/C,T/T
    Supply Ability : 6000 PCS/Month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    ​​Professional Insulated Hoisting Tackle For Live Line Maintenance

    ​​Professional Insulated Hoisting Tackle For Live Line Maintenance


    The ​​Insulated Hoisting Tackle with Epoxy Resin Plate and Nylon Sheave​​ is a specialized lifting device designed for safe operation in energized electrical environments. This professional-grade equipment combines non-conductive materials with robust construction to provide reliable performance during live line maintenance and installation work.


    ​Construction & Safety Features:​

    • ​​Frame Material:​​ High-strength fiber-reinforced epoxy resin composite
    • ​​Sheave Composition:​​ Industrial-grade nylon with glass fiber reinforcement
    • ​​Insulation System:​​ Double-layer dielectric protection up to 36kV
    • ​​Bearing Assembly:​​ Sealed ceramic bearings for non-conductive rotation
    • ​​Load Capacity:​​ Rated for 3 tons (2.7 metric tons) working load
    • ​​Safety Factor:​​ 4:1 minimum breaking strength
    • ​​Visual Indicators:​​ Color-coded voltage rating markers


    ​​Performance Advantages:​

    • ​​Electrical Safety:​​ 100% non-conductive materials eliminate shock hazards
    • ​​Lightweight Design:​​ 50% lighter than traditional insulated blocks
    • ​​Reduced Maintenance:​​ Self-lubricating nylon requires minimal care
    • ​​Corrosion Resistance:​​ Impervious to moisture and chemicals
    • ​​Rope Protection:​​ Non-metallic sheave prevents conductor damage
    • ​​UV Stability:​​ Maintains integrity in direct sunlight
    • ​​Temperature Tolerance:​​ -40°F to +250°F (-40°C to +121°C)


    ​​Professional Applications:​

    1. ​​Live line transmission maintenance​​
    2. ​​Energized substation equipment handling​​
    3. ​​Overhead distribution line repairs​​
    4. ​​Emergency power restoration​​
    5. ​​Railway catenary system work​​
    6. ​​Industrial plant electrical maintenance​​
    7. ​​Renewable energy farm connections​​

    ​​

    Available Configurations:​

    • ​​Standard Insulated:​​ 15kV rating
    • ​​High-Voltage:​​ 36kV protection
    • ​​High-Temperature:​​ For furnace areas
    • ​​Marine Grade:​​ Saltwater resistant
    • ​​Custom Designs:​​ Special voltage requirements


    ​​Why Choose Our Insulated Hoisting Tackle:​

    • ​​Tested to ASTM F711 standards​​
    • ​​Used by major utility companies​​
    • ​​Non-deteriorating insulation​​
    • ​​Easy inspection with clear markings​​
    • 1-year insulation integrity warranty​


    Item numberModelNumber of sheavesRated load (kN)MAX. Rope Diameter(mm)Weight (kg)
    11401QHJ1x1110Φ81.8
    11402QHJ1x22Φ61.8
    11403QHJ1x33Φ62.1
    11411QHJ2x1120Φ102.9
    11412QHJ2x22Φ83.1
    11413QHJ2x33Φ83.8
    11421QHJ3x1130Φ114.1
    11422QHJ3x22Φ104.3
    11423QHJ3x33Φ85.3
    11424QHJ3x44Φ86.3
    11431QHJ5x1150Φ135.6
    11432QHJ5x22Φ116.1
    11433QHJ5x33Φ107.3
    11434QHJ5x44Φ108.3
    11441QHJx1150Φ81.3
    11442QHJx22

    Φ6

    1.3
    11443QHJx33Φ61.8

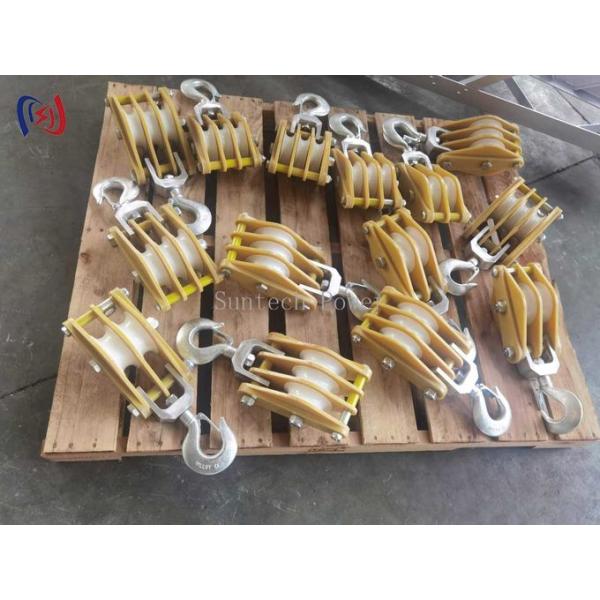

    Nylon Sheave Hoist Sheave Tackle Stringing Tools 5KN - 50KN Transmission Line Tool 0
