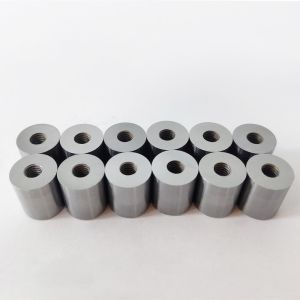

Surface Coated Skh51 High Speed Mold Core Insert for Beverage
Plastic Bottle Cap
Mold Core Insert and Cavity Plates :
Every mould consists of two plates called Mold Core Insert and
cavity plate. Into one plate is sunk the cavity which shapes the
outside form of the moulding and is therefore known as the cavity
plate. Similarly the core which projects from the Mold Core Insert
plate forms the inside shape of the moulding. when the mould is
closed , the two plates come together forming a space between the
cavity and core which is the impression
The moulding, as it cools, will shrink on to the core and remain
with it, as the mould opens. this will occur irrespective of
whether the Mold Core Insert is in the fixed half or the moving
half. However, this shrinkage on to the core means that some form
of ejector system is almost certainly necessary. Motivation for
this ejector system is easily provided if the Mold Core Insert is
in the moving half
Specification Of Mold Core Insert Components:
Product Name | Mold Core Insert |
Materials | SKD61/SKH51/SKD11/SKH40/ASP23/ASP30/D2/A2 etc. |
Hardness | 50~60HRC |
Standard | DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO ect |
Tolerance | ±0.002mm |
Coating | TiCN, TiN, Aitain, Ticrn, nitriding, Black coating etc available |
Production Address | Dongguan, Guangdong, China |
Lead Time | Sampling: 7-10 workdays
Normal making: 10-12 workdays
Complex design/making: 15-20 workdays |
Order Process | Customer inquiries → Provide Spec./CAD/3D drawing → Engineer check
and quote → Offer PI → Customer Send PO → 35% advanced
payment (100% for First time cooperation) → Factory production
process → QC passed √ → Packing and deliver at the first time → Fly
to customers' hands soon! |
After-sell Service | Contact Senlan if have any question after receiving the samples and
products, our team will try best to offer you the best quality |
Quality Assurance:
1. High-precision measuring equipment.
2. Strict process comtrol that make sure every part OK
3. FMEA(Failure Mode Effects Analysis)
4. FAL(First Article Inspection)
5. SPC(Statistical Process Control)
Packaging Details:
1. Each parts in plastic bag
2. Carton box,rust protection and suitable for shipment.
3. We can pack lit as per your request.
FAQ:
Q1: Where Can I Get Product&price Information?
A: Pls feel free to contact us Send us e-mail, we will contact you
as we receive your mail
Q2: Can You Do OEM/ODM?
A: Senlan accept all OEM/ODM orders, just give us your design or
tell us your requirements, we will make samples for you soon
Q3: Can You Do Design For Me?
A : We have 15 years experienced designers, according to your
requirement, we can add your company logo, website, phone number or
any of your ideas on the products or on the box...we will submit
the quotation in 4 hours if getting detailed information during
working days. In order to quote for your earlier, please provide us
the following information together with your inquiry:
1) 3D Step of files and 2D Drawings
2) Material requirement
3) Surface treatment
4) Quantity(per order/per month/annual)
5) Any special demands or requirements such as packing, labels,
delivery,etc
Q4: Can You Supply Me Samples?
A: Yes, we can do 3D printing or vaccum casting sample for customer
Q5: What Should We Do If We Receive Defective Products
A: If receive defective product, please send us the photos, we will
feedback to our enginners and QC department and solve the problems
ASAP
Q6: What Is Your Terms Of Payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the
photos of the products and packages before you pay the balance
