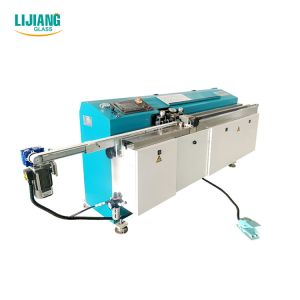

Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame
Butyl rubber coating machine is made of aluminum box type hollow
glass must be hollow glass equipment; whether it is vertical hollow
glass production line or bedroom glass machine; butyl rubber
coating machine is necessary.
The role of the butyl rubber coating machine is to give the
aluminum ore to butyl rubber; this is the first sealant of
insulating glass. The quality of the sealant directly determines
the quality and service life of insulating glass.
Parameters of extrusion coating machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Main feature of extrusion coating machine
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the
distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Electrical parameters of Butyl extruder machine
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Related products of LIJIANG GALSS
Automatic molecular sieve filling machine
Automatic desiccant filling machine is a kind of auxiliary
equipment for the production of insulating glass. It’s for filling
desiccant to aluminum spacers of insulating glass and use together
with automatic spacer bending machine. Due to the formed spacer
cannot be filled by traditional methods, so for this kind of
spacers, we developed Automatic desiccant filling machine. The
filling machine not only can fill bent aluminum frame, but also can
fill pins aluminum spacers.
Air-frame processing:Hardening on the key parts adopt high quality material and surface
coating processing to ensure reliable and durable components.
Airframe adopt high quality orange-peel finish.
Control system: adopt German Siemens PLC processing control
component.
Electric elements: Only imported or top-grade domestic electric elements should be
used on the equipment,such as AUTONICS. All these elements were
carefully selected and inspected, and only those passed strict
tests can be used for equipment fabrication. solenoid valve,cylinder and the Pneumatic components all adopt the elements of
the prestigious company Airtac or top-grade domestic company.
Dimensions: Minimum 250 x 300mm;
Maximum 2000 x 2000 mm
Molecular sieve diameter: Φ0.5 ~Φ0.8 mm.
Molecular sieve diameter: Φ1.0~Φ1.5 mm (special customization)
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of
spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve
efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
| LJGZ2020 Automatic Desiccant Filling machine |
| Number | Name | Model | Quantity | Remarks |
| 1 | Mainframe | LJGZ2020 | 1 | |
| 2 | Machine clothing | | 1 | |
| 3 | instructions | | 1 | |
| 4 | Certificate of approval | | 1 | |
| 5 | Heater | GBZ02-01-03-09 | 1 | |
| 6 | Resistance thermometer sensor | Pt100 | 1 | |
| 7 | Piston ring | GZB02-01-03-07-02.001 | 1 | |
| 8 | Cross recessed | M8*10 | 15 | |
| 9 | Drill head | Ø4.2 | 2 | |
| 10 | Gas drilling wrench | | 1 | |
| 11 | Pneumatic | ASL6-M5,ASL6-1,APL6-2,ASL6-2,APC6-2 | 1 | |
| 12 | Allen wrench | | 1 | Single machine |
| 13 | One head screwdriver2# | | 1 | Single machine |
| 14 | Cross recessed | M8*20,M6*20 | 10 pieces each |
|
| 15 | Spring washer | 8,6 | 10 pieces each | |
| 16 | Open cover wrench | GZB-209-00 | 1 | |
| code:LJGZ2020 | packing inspector | Inspector: |
