3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill

    Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers

    Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers
    • Buy cheap 3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill from wholesalers

    3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill

    Ask Lasest Price
    Brand Name : ZTIC
    Certification : ISO CE
    Supply Ability : 1000.0 Set/Sets per Year
    Price : Negotiatable
    Model Number : Ore Grinding Mill
    • Product Details
    • Company Profile

    3-260 Tph Marble Crushing Plant Heavy Hammer Crusher For Ore Grinding Mill

    Product Description

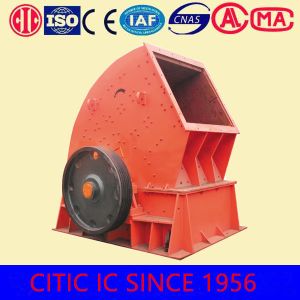

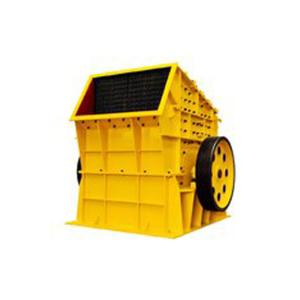

    PC Series Hammer Crusher:
    1.Secondary and fine crushing
    2.3-260 tph
    3.Feeding Size:80-350mm,Discharging Size:<25mm

    PC Series Hammer Crusher can be used to break the brittle material whose compression strength is less than 150Mpa such as the secondary and fine crushing of limesone,coke and coal etc.but also be used in processing medium hardness material in metallurgy, chemistry industry, e.g. carbon, limestone, and artificial aggregate.

    PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.

    Specification of hammer crusher

    TypeRotor diameter
    (mm)
    Rotor length
    (mm)
    Max. Feeding side length(mm)Discharging particle size(mm)Production capacity
    (t/h)
    Power of motor (KW)Weight
    (t)
    Outline dimension(mm) Length× width× Height
    PC-0404φ40040080≤153--57.50.915181010630
    PC-0604φ600400100≤156—1018.51.517551210785
    PC-0606φ600600100≤1510—1837—452.521151210785
    PC-0808φ800800160≤1518—3055—753.5285513601040
    PC-1010φ10001000200≤2035—55110-1327.6351418501400
    PC-1012φ10001200

    200

    ≤2045—651328.5405518501400
    PC-1212φ12501200200≤2070--110160-18514.1

    4475

    1920

    1910

    PC-1414φ14301400250≤25110--160

    280

    25.6

    546724652260
    PC-1616φ16001600350≤25180--26050035.2580037802700

    Note:
    1. This equipment can control the Max. Value of the discharging particle size with screen plate.
    2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity.
