    IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1202
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus


    IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus


    Product Information:

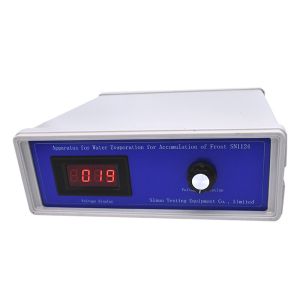

    This test apparatus is designed and manufactured according to the standard requirement of IEC 60335-2-24 clause 11.102 and Annex BB (figure BB.1). It is used for water evaporation for accumulation of frost on these samples, such as refrigerators, ice-cream appliances and ice-makers. This container shell is made from PVC material, and the heat conduction part is made of cooper. It has the beautiful appearance and easy to operate.


    Technical Parameters:

    Applied standardIEC 60335-2-24
    Applied clause11.102 and Annex BB (figure BB.1)
    Input power supplyAC220V, 50HZ
    Frame materialPVC or Bakelite
    The material of heat conduction boardCopper plate
    Heating source5W incandescent lamp
    Output voltage of voltage supply device20~220V, adjustable
    Power consumptionDigital display
    Container external size145*145*145mm
    Consumption water weighing methodDigital display electronic balance (provided by the user)
    Water Interjection methodManually

    Quality IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus for sale
