W70cu30 W80cu20 Tungsten Copper Plate Tungsten Copper Sheet

W70cu30 W80cu20 Tungsten Copper Plate Tungsten Copper Sheet

Tungsten Copper Plate is an alloy composed of tungsten and copper. Commonly used alloys contain 10% to 50% copper. The alloy is prepared by powder metallurgy, which has good electrical and thermal conductivity, good high-temperature strength and certain plasticity. At very high temperatures, such as above 3000°C, the copper in the alloy is liquefied and evaporated, absorbing a large amount of heat, and reducing the surface temperature of the material. So this kind of material is also called metal sweating material.

Since the two metals of tungsten and copper are incompatible with each other, tungsten-copper alloy has the low expansion, wear resistance, corrosion resistance of tungsten and the high electrical and thermal conductivity of copper, and it is suitable for various mechanical processing. Tungsten-copper alloys can be produced according to user requirements for tungsten-copper ratio production and size processing. Tungsten-copper alloys generally use powder metallurgy processes to prepare powder-batch mix-press molding-sintering infiltration.

Tungsten Copper Plate Specification

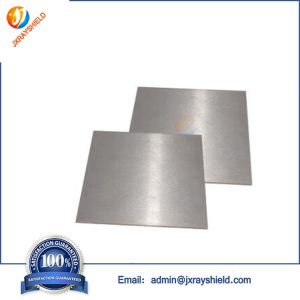

Tungsten Copper Plate Picture:

performance
Tungsten-copper composite material is a two-phase structure pseudo-alloy mainly composed of tungsten and copper elements. It is a metal matrix composite material. Due to the large difference in physical properties between metallic copper and tungsten, it cannot be produced by melting and casting. Generally, powder alloys are used. Technology for production.
Tungsten-copper alloys have a wide range of uses, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture high-temperature components such as the contacts of high-voltage electrical switches that are resistant to arc ablation, rocket nozzle throat lining, and tail rudder. occasion.

Process introduction
The process of preparing tungsten-copper alloy by powder metallurgy is powder-making-batching mixing-pressing forming-sintering infiltration-cold working.
Tungsten-copper or molybdenum-copper mixed powder is press-formed and then sintered in liquid phase at 1300-1500°. The material prepared by this method has poor uniformity and many closed voids. The density is usually less than 98%. However, ultra-fine and nano-powders are prepared by the activation sintering method with a small amount of nickel, mechanical alloying method or oxide supply reduction method It can improve the sintering activity, thereby increasing the density of tungsten-copper and molybdenum-copper alloys. However, nickel activation sintering will significantly reduce the electrical and thermal conductivity of the material, and the introduction of impurities in mechanical alloying will also reduce the conductivity of the material; the oxide co-reduction method to prepare powders is cumbersome in the process, low in production efficiency, and difficult to mass production.

JINXING MATECH is a research and development, production, processing and sales of integrated, comprehensive refractory metal, precious metal material manufacturer.JINXING MATECH is an expert provider on the metal solution. Especially on the products such as Tungsten , Tungsten copper , Titanium , Zirconium, Vanadium, Hafnium, Sputtering Target , Nickel base alloy, Cobalt base alloys etc, products quality supplied according to ASTM , ASME , AMS , MIL , ISO , DIN and EN Standard which mainly used in Semiconductor, Petro-Chemical, Solor , Medical , Aerospace, Military industries.

So far JINXING MATECH's has attracted more than 50 countries customers in We mainly supply to the Market such as Canada, Sweden, Italy, Denmark, India, New Zealand , Mexico, South Korea , Netherland , Australia , India and Southeast Asia coutries sand many other countries and regions by reliable qualities, professional service and cost effective pricing. JINXING MATECH's production and inspection equipments include 100tons Hydraulic press, 20 tons Automation Controls Press, Vacuum Pressure Sintering Furnace , Electro-sparking wire cut machine ,powder metal Mixer, Granulation Drum, Hydrogen Sintering Furnace, Rochwell and Brinell hardness meters ,Metallocope , carbon and oxygen analyser etc.. JINXING MATECH's has 8,000 square meters construction area as well as two workshops ,JINXING MATECH people keep improving products quality and inspect the density, hardness and composition of finished products strictly, which ensures every product meets customers' requirements.

Technology Process

Strong manufacturing capabilities along with a full-scale R&D and test lab give us the ability to fully control all process of raw materials preparing, manufacturing, inspection, packing and delivery.

Our success is built on long-standing customer relationships, the quality of our sputtering targets and the level of technical and logistic services and sensitivity to economic, political and environmental issues. Within our organization, we are continually challenging our own performance.

All of our core technical team members have more than 10 years professional experience of both R&D and high volume manufacturing. Our business operations and logistics team is staffed with experienced professionals to provide friendly and timely support and services to our customers.

Quality Assurance

Special Metals Fabrication is an ISO 9001: 2015 accredited company. Our attitude to quality assurance means we are continually striving to improve our company and to ensure we are working to the highest possible standards.

Quality is a big part of every day at Special Metals Fabrication. Each service we offer has its own team of experts, making sure everything we offer complies within the standards we have set.
