Product Name

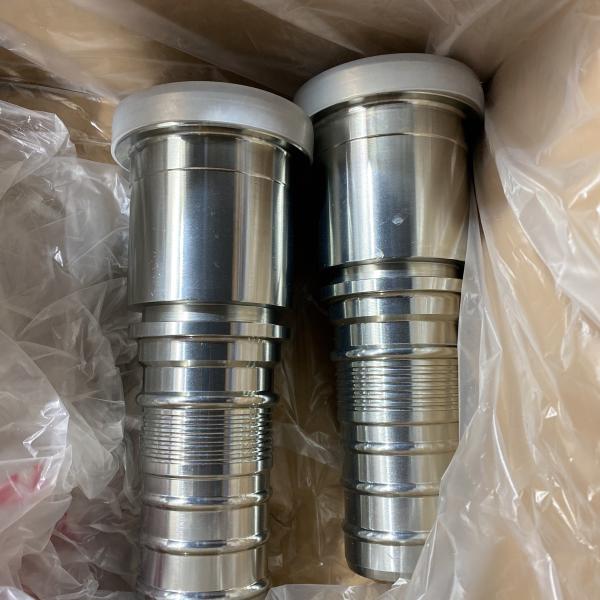

87913 SAE 9000 PSI Straight Flange Carbon Steel Hydraulic Hose Flange Fitting Hydraulic Straight Flange
hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | L |
| 87913-12-12 | 3/4" | 20 | 12 | 58.5 | 41.3 | 31.7 | 14.3 |
| 87913-16-12 | 1" | 20 | 12 | 63 | 47.6 | 38 | 14.3 |
| 87913-16-16 | 1" | 25 | 16 | 64.4 | 47.6 | 38 | 14.3 |
| 87913-20-16 | 1.1/4" | 25 | 16 | 66.8 | 54 | 43 | 14.3 |
| 87913-20-20 | 1.1/4" | 32 | 20 | 73.8 | 54 | 43 | 14.3 |
| 87913-24-20 | 1.1/4" | 40 | 24 | 80.6 | 63.5 | 50.8 | 14.3 |
| 87913-24-24 | 1.1/2" | 32 | 20 | 80.7 | 63.5 | 50.8 | 14.3 |

|
