    20 Liter PET Gallon Bottle Blowing Machine Compact Construction

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : FP-120
    Certification : CE. ISO9001
    Price : USD7500 per set
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 20 sets/month
    Delivery Time : 20-25 days after deposit receipt
    • Product Details
    • Company Profile

    20 Liter PET Gallon Bottle Blowing Machine Compact Construction

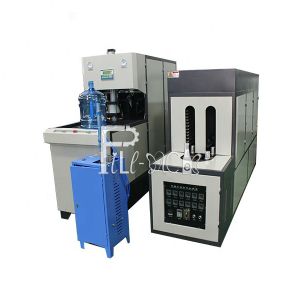

    Semi-auto Blow Molding Machine for 3-5 Gallon 20 Liter PET Plastic Bottle


    Trait:

    FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles (10-20L) and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.

    ●Perfect function with economic investment.

    ●Small size and compact construction with no space waste.

    ●Easy to operate and maintain ,operation by one person .

    ●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

    ●We can provide performs and various bottle& cap molds for 3 gallon and 5 gallon (10-20L) bottles to meet customer’s requirements.


    Parameters:

    Model
    FP-120
    Container
    Product material
    PET
    Volume
    10L-20L(3-5Gallon)
    Output
    120-150BPH
    Max bottle length
    430mm
    Max bottle diameter
    300mm
    Moulding
    Stretching stroke
    450mm
    Clamping force
    6000kg
    Mould opening stroke
    360mm
    Machine size and weight
    Main machine (L x W x H)
    2350*750*1900mm
    Main machine weight
    1500Kg
    Heater (L x W x H)
    2670*680*1650mm
    Heater weight
    380Kg
    Power
    40kw

    Delivery time:
    The machines will be made within 15-20 working days after the bottle design are confirmed;

    Payment:
    30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance
    of 70% T/T before shipment
