Aluminum Weld Base CD Insulation Bi-Metallic Welding Pins For
Shipping Build
CD Insulation Bi-Metallic Welding Pins Products Introuduce:
Insulation Bi-metallic Welding pins is also called capacitor
diacharge weld pins ,usually used for shipping
build ,the base is aluminum weld base , the pin can be galvanized
,stainless steel,aluminum material ,as
a manufacturer ,we not noly supply standard weld studs ,but also special design studs and pins ,if you can
not the specification you are looking for ,pls contact us ,other material and design on
request
Accessories is self-locking washer ,3 slots washer ,dome cap washer
,platic dome washer .all washer are
available in a variety of sizes ,shapes and material
CD Insulation Bi-Metallic Welding Pins Specification:
| BI-Metallic weiding Pin diameter | base size | length |
| 2.7mm | 8x11 | 15-500mm |
| 3mm | 8x11 | 15-500mm |
| 3.4mm | 8x11 | 15-500mm |
| BI-Metallic welding Pins MATERIAL | STANDARD OF MATERIAL |
Low Carbon Mild Steel 4.8 (weldable) EN 20898-1
Stainless Steel A2-50 (weldable) EN ISO 3506-3
Aluminium Alloy AlMg3 EN 573-3
Pure Aluminium EN 573-3
Lead Free Brass 4.8 (weldable) ISO 426 –1 / ISO 1638 |
Pic Of CD Insulation Bi-Metallic Welding Pins:
Feature of CD Insulation Bi-Metallic Welding Pins :
| features of the Bimetallic Welding Pins |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards
and providing a professional appearance.Climatech weldpin shanks
are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for
complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating
range of temperatures of 0 degrees C to 121degrees C and are not
adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | CD Weld pins will not fatigue or be physically affected by
vibrations normally found in high velocity air handling systems. |
Accessories of CD Insulation Bi-Metallic Welding Pins :

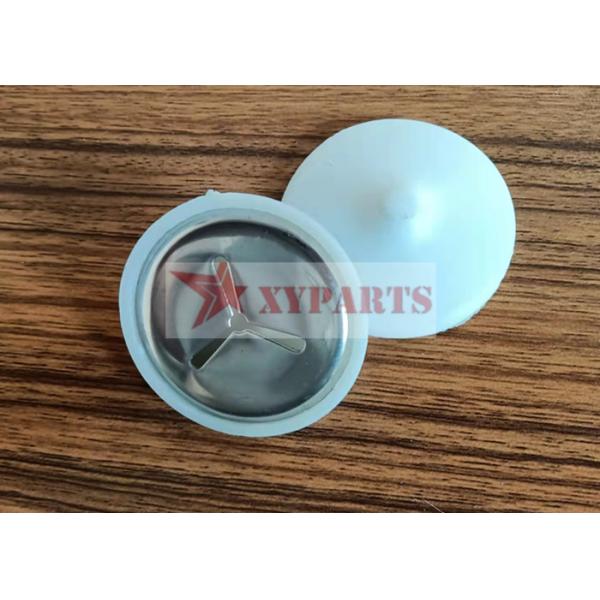

| Dome cap washer | self-locking washer |
| metal cap+clips | plastic cap +clips | 3 slots washer |
 |  |  |
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation
fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold
according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
