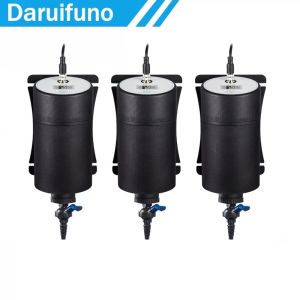

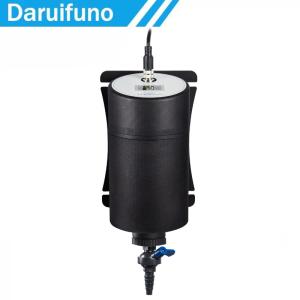

    Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : OLTU603-0MDO1A
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

    Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring


    Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring


    The water turbidity sensor is a continuous monitoring instrument probe that is widely used in environmental protection, pharmaceutical, biochemical, food and tap water solutions for turbidity and temperature.


    Specification:

    Product Name
    Lazer Turbidity sensor
    Product Model
    OLTU603-0MDO1A
    Brand Name
    Daruifuno
    Measuring Range
    0.01~100NTU 0.1~50℃
    Light Source
    660nm laser light source
    Accuracy
    0.001~40NTU is ±2% of reading or ±0.015NTU take the larger one;
    40~100NTU is ±5% of reading
    Operating Environment
    0~45℃
    Flow Rate
    100ml/min≤x≤500ml/min
    Calibration
    Standard solution/water sample/zero point calibration

    Working Instructions


    OLED window
    Sample liquid Level
    Judge and prompt
    Sample Emptying/Blowdown
    Equipped
    Sample Interface
    Injection port: 1/4NPT, discharge port: 1/2NPT
    Main Material
    Body: ABS+Nylon
    Dimensions

    Length*Wide*Height: 140*117*214mm


    Please click the user manual of RS485 turbidity sensor here:

    OLTU6 Turbidity sensor.pdf


    Features& Advantages

    ● Adopt 660nm laser light source, high resolution and fast response;
    ● Can be used in online transmitter, DTU, integrated system;
    ● Low sampling flow requirements, reducing the amount of waste liquid generated in the measurement;
    ● The turbidity flow cell can eliminate the interference of air bubbles to the measurement to the greatest extent;
    ● Optional window and automatic emptying system to reduce maintenance workload;
    ● Liquid level detection function can automatically determine whether the sample liquid level in the flow cell meets the measurement requirements;
    ● Stream-style sample track to prevent the sedimentation of suspended solids caused by low flow rates;
    ● RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system;
    ● Internal storage of calibration data, support offline calibration, plug and play on site.


    Aplication:

    Water treatment monitoring

    Drinking water,surface water,water quality analyze,ground water,ect.


    Industrial process monitoring and dosing control

    Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.


    FAQ

    Q1. What is the measuring principle of the turbidity sensor?
    A: The turbidity sensor is based on the infrared absorption scattered light method, use ISO7027 method to determine the turbidity continuously and accurately;


    Q2. What is the advantage of digital turbidity sensor?
    A: The digital turbidity sensor is conducive to long-distance signal transmission without serious signal attenuation. The sensor has RS485 interface, standard Modbus RTU communication protocol.


    Q4.Can the measuring range of the laser turbidity sensor be customized?
    The standard measuring range of DRFN lazer turbidity sensor is 0-100 range, The measuring ranges can be customized according to needs.


    Q5. The sample liquid level can be judge and prompt? the sample emptying/ Blowdown equiped?

    Yes. the sample liquid can be judged and prompt and the sample emptying /blowdown equipped.
