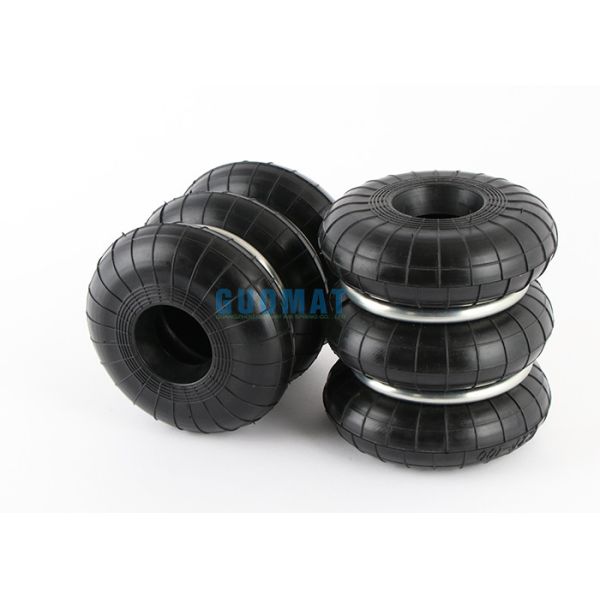

    Stainless Steel 120-3 Yokohama Air Spring Cushion S-120-3 Triple Convolutions Press

    Ask Lasest Price
    Brand Name : Airsustech
    Model Number : F-100-3
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Stainless Steel 120-3 Yokohama Air Spring Cushion S-120-3 Triple Convolutions Press

    Stainless Steel 120-3 Yokohama Air Spring Cushion S-120-3 Triple Convolutions Press


    AIRSUSTECH F-120-3 Cross other OE:


    AIRSUSTECH Part No.: F-120-3

    Yokohama Part No.: S-120-3

    Yokohama Part No.: S120-3

    Yokohama Part No.: S-120-3R

    Yokohama Part No.: S120-3R


    AIRSUSTECH F-120-3 weight and packing size:

    Net Weight:1.7 KG


    Gross Weight:2.5 KG


    Package Size:24mm*24mm*24mm

    Compressed height:87mm


    Maximum Height:222mm


    Full stroke:105mm


    Working medium:water, air

    Working pressure:< 0.7Mpa

    Burst pressure:> 1.6Mpa

    Endurance cycle:> 10"

    Temperature:-35℃ ~+60℃


    F-100-3 items Detailed Parameter Table:


    F-120-3 items Detailed Parameter Table:


    GUOMAT NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-120-3S-120-315222782±53180

    GUOMAT NO.Reference No.Standard Height,Internal Pressure 0.49 M pa When The General ValueUsing Maximum Internal Pressure (M pa)Internal Pressure (M pa)
    Effective Area (Cm2)Volume(L)Load (K n)Dynamic Spring Parameters (N/Min)Vibration Frequency (Hz)
    F-120-3S-120-31132.15.2982.20.882.9-3.9


    How long does it take to receive my order?


    GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.
