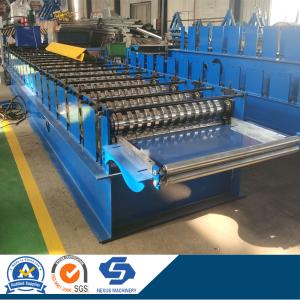

G550 Mpa Plate Run 850 Roofing Sheet Roll Forming Machine with Wuxi
QualityThe roofing panel machines can produce various of steel roof and
wall panel, it is a new building materials ,the products are widely
used as the roof and wall of factory, warehouse, garage, gymnasium,
exhibition center, cinema, theatre, etc. It has many advantages,
such as easy installation, short building period , beauty, light
weight but high strength.
1. Processing flow diagram of machine:

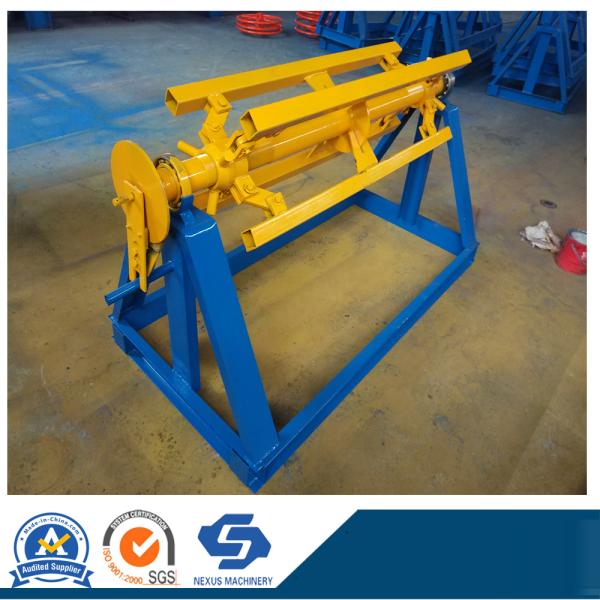

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting
→Output table
2. Profile Drawings for Reference:
3. Technical parameters for G550 Mpa Plate Run 850 Roofing Sheet
Roll Forming Machine with Wuxi Quality :A. General
| Suitable Material | HRB60 or equivalent |
| Material Thickness | 0.2-0.6 mm |
| Dimension | About 7.2*1.3*1.1m(L*W*H) , as per the drawing |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting | Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
Treating process: tempering- finish turning, high rigidity, hard to deform. |
Cutting Blade Material | Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode
cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement Device | Omron, made in Japan. |
| It features with high accuracy and stability. |
1) Engineer will give free training lessons to labors in buyer's
factory.
2) The Buyer will buy the round-trip air ticket for Engineer if
visa application is approved. The buyer is also responsible to bear
expenses generated, e.g. visa formalities, meals, accommodation and
allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts
without any charge in case of quality discrepancy caused by us. If
the malfunctions are caused by your incorrect operations, we will
provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one
year and provide long-term technical guide.5. Photos of G550 Mpa Plate Run 850 Roofing Sheet Roll Forming
Machine with Wuxi Quality for Reference:
