RoHS Heat Transfer Blue Thermal Release Tape
Heat Transfer Tape Blue TS630D With Higher Initial Adhesion Becomes
Almost “Zero” By Heating

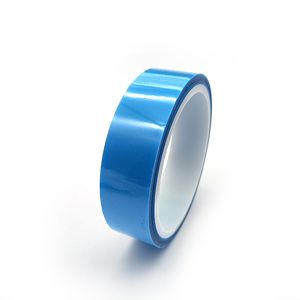

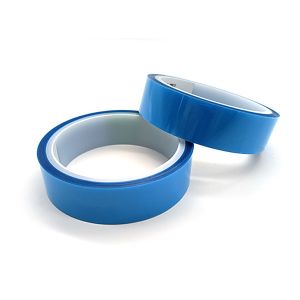

TS630D is a blue polyester film backed pressure-sensitive adhesive
single-sided coated thermal release tape. It has a high initial
adhesion and easily is peeled off by heating under a certain high
temperature(130-160℃).
Blue Thermal Tape Features And Benefits:
1. dhesive strength becomes almost “zero” by heating and can be
removed without damaging substrates.
2. Substrates can be processed by temporarily fixing pressure
sensitive adhesive face to the stage.
3. Provides a high processing accuracy since substrates are kept in
a fixed position.
4. Three types (rolls, labelers and sheets) are available.
5. Environmentally friendly since no cleaning is required for
substrates.
Properties:
| Item | Typical Value |
| | Metric |
| Backing | 0.075mm |
| Total Thickness | 0.135±0.005mm |
| Tack | ≥12(J.DOW/#) |
| Adhesion | Before heating | 3-7N/25mm |
| After heating | 0 |
| Tensile Strength | ≥3.5(KN/M) |
| Elongation | ≥45% |
Construction:
Application:
TS630D is a unique thermal release tape that is excellent for high
temperature applications. Adhesion is virtually eliminated by
heating to release temperature, available in single and double
sided. Polyester film, acrylic adhesive with PET liner.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of
direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored
in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other
contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Provide samples and best service.
3. Good production capacity and fast delivery.
Notes:
Please be advised that this technical data sheet is written based
on our lab tests and experience only. Customer is responsible to
determine the suitability of the product meets intended application
requirements before approved for use.
