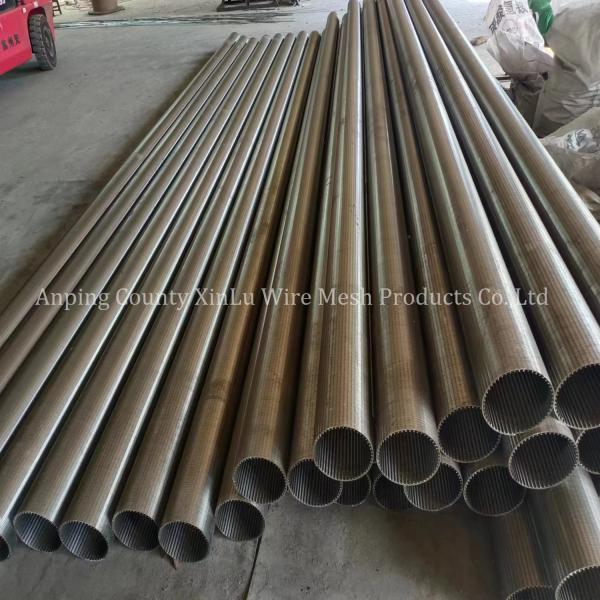

SAND CONTROL WEDGE WIRE CONTINUOUS SLOT SCREEN PIPE
The continuous slot wedge wire screen pipe is widely used
throughout the world for water, oil, and gas wells, and is the
dominant screen type used in the water well industry.
Xinlu continuous slot wedge wire screen pipe is made by winding cold-rolled wire, approximately triangular in
cross section, and round a circular array of the longitudinal rods.
The wire is attached to the rods by welding, producing rigid
one-piece units having high strength characteristics and minimum
weights.
Slot opening for continuous slot wedge wire screen pipe are manufactured by spacing successive turns of the outer wire to
produce the desired slot size. All slots should be clean and free
of burrs and cuttings.
Each slot opening between adjacent wires is v-shaped, from the
special shape of wire used to form the screen surface. The v-shaped
openings designed to be nonclogging, are narrowest at the outer
face and widen inwardly. They allow more flow.
1. Production process continuity: V-shaped profile wires creating
slots which enlarge inwardly and therefore avoid clogging and
minimize downtime.
2. Low maintenance costs: Separation at the screen surface which
can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings
resulting in accurate separation without loss off media
4. Low operational costs: Large open area with an effective flow,
high yield and a low pressure drop
5. Long live: Welded at each intersections creating a strong and
durable screen.
6. Reduced installation costs: Supporting constructions eliminating
costly support media and enabling a maximum flexibility in the
design of components
7. Chemical and thermal resistant. A variety of corrosion resistant
stainless steel materials and many exotic alloys suitable for high
temperatures and pressures.
Each slot opening between adjacent wire is v-shaped, resulting from
the special shape of the wire used to form the screen surface. The
v-shaped openings, designed to be non-clogging are narrowest at the
outer face and widen inwardly.
continuous slot wedge wire screen pipe provide more intake area per unit area of screen surface than any
other type. For any given slot size this type of screen has maximum
open area.
Slot size(mm): 0.10, 0.15, 0.25, 0.30-3, also achieved upon
customer request.
Open area up to 60%
Material: Low carbon, low carbon galvanized steel(lcg), steel
treated with plastic spraying, stainless steel (304, 316,etc)
Lengths up to 6meters
Diameter ranging from 25mm to 1300mm
End connection: Plain beveled ends for butt welding or threaded
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Advantages of Wedge Wire Screen Pipe:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can
produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such
as flanges, weld rings, or threads, so that the pipes can be
connected to meet
---------------------------------------------------------------------------------------------------------------
